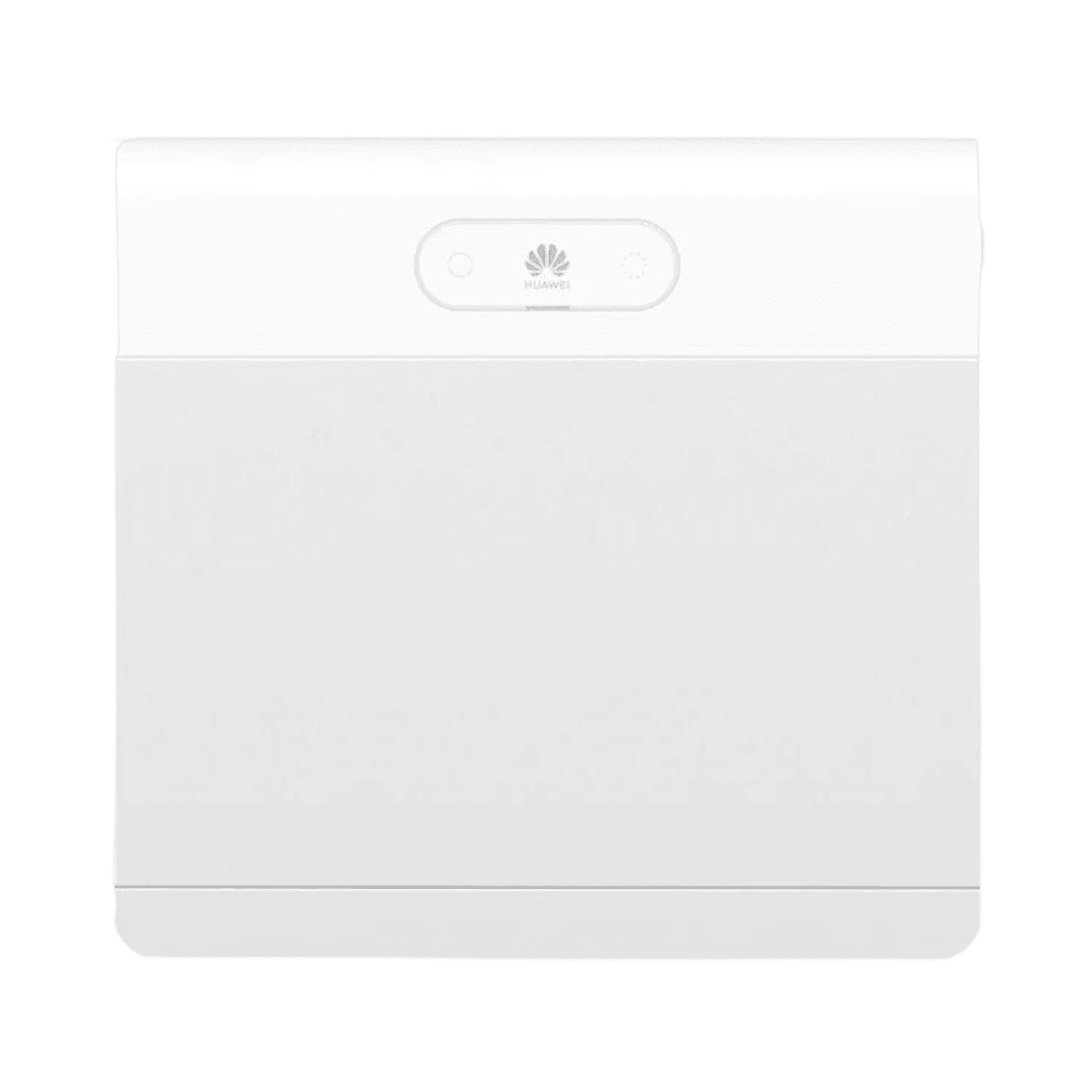

# Huawei LUNA2000-5-E1 Battery Module - Art.No.: 01076608-004

## Specifications

- **Brand**: Huawei
- **HS code**: 85076000
- **Manufactor**: Huawei
- **Net Height**: 360 MILLIMETER
- **Net Length**: 255 MILLIMETER
- **Net Weight**: 68 KILOGRAM
- **Net Width**: 590 MILLIMETER
- **Origin**: China
- **Battery capacity**: 5 KILOWATT
- **Ingress Protection**: IP66
- **Number of phases**: 1 phase, 3 phase
- **System**: Huawei LUNA2000, Huawei S1
- **Voltage battery**: High
- **Warranty in Years**: 10

### Advantages of the Huawei LUNA2000-5-E1


- **Modular design**: combine 5 kWh and 7 kWh modules in one system
- **Maximized energy**: built-in energy optimizer and 100% Depth of Discharge (DoD)
- **Advanced safety**: 5-layer protection at cell, electrical, and structural levels
- **Easy installation**: cable-free connection between battery modules
- **Durable performance**: operating temperature range from -20°C to +55°C


The Huawei LUNA2000-5-E1 is a high-performance 5 kWh battery module, part of the latest Huawei S1 series. It is designed for residential energy storage systems that require maximum flexibility. The Module+ architecture ensures each module performs optimally, regardless of the state of other modules in the group.


### Flexible Capacity and Compatibility


The S1 series allows you to combine this 5 kWh module with the **[Huawei LUNA2000-7-E1 Battery module](https://www.estg.eu/en-gb/p/1076608)**. Both modules utilize the same **[Huawei LUNA2000-10KW-C1 power module](https://www.estg.eu/en-gb/p/1076596)** for management and BMS functions. A single inverter can support up to 4 groups, providing a total usable energy capacity of up to 20.7 kWh.


### Safety and Installation Experience


Safety is paramount with Huawei’s 5-layer protection system, including active cell-level protection. The cable-free connection between modules simplifies the stacking process, while app-based commissioning speeds up the installation. The system supports standard floor mounting and optional wall mounting.

## Downloads

- [Huawei LUNA2000 5 7 S1 Datasheet](https://cdn.estg.eu/p/a/2/6/8/a26889ffe852478d2cf17943e7d87a3c250f082d_Huawei_LUNA2000_5_7_S1_Datasheet.pdf)
- [Huawei LUNA2000 S1 Quick Guide](https://cdn.estg.eu/p/b/c/d/e/bcde079aea7541d21a089c291d5c0f3d70b4ec6e_Huawei_LUNA2000_S1_Quick_Guide.pdf)
- [Huawei LUNA2000 S1 User Manual](https://cdn.estg.eu/p/a/1/7/a/a17a22f70472e1237c466fc8be27909327d1301d_Huawei_LUNA2000_S1_User_Manual.pdf)
