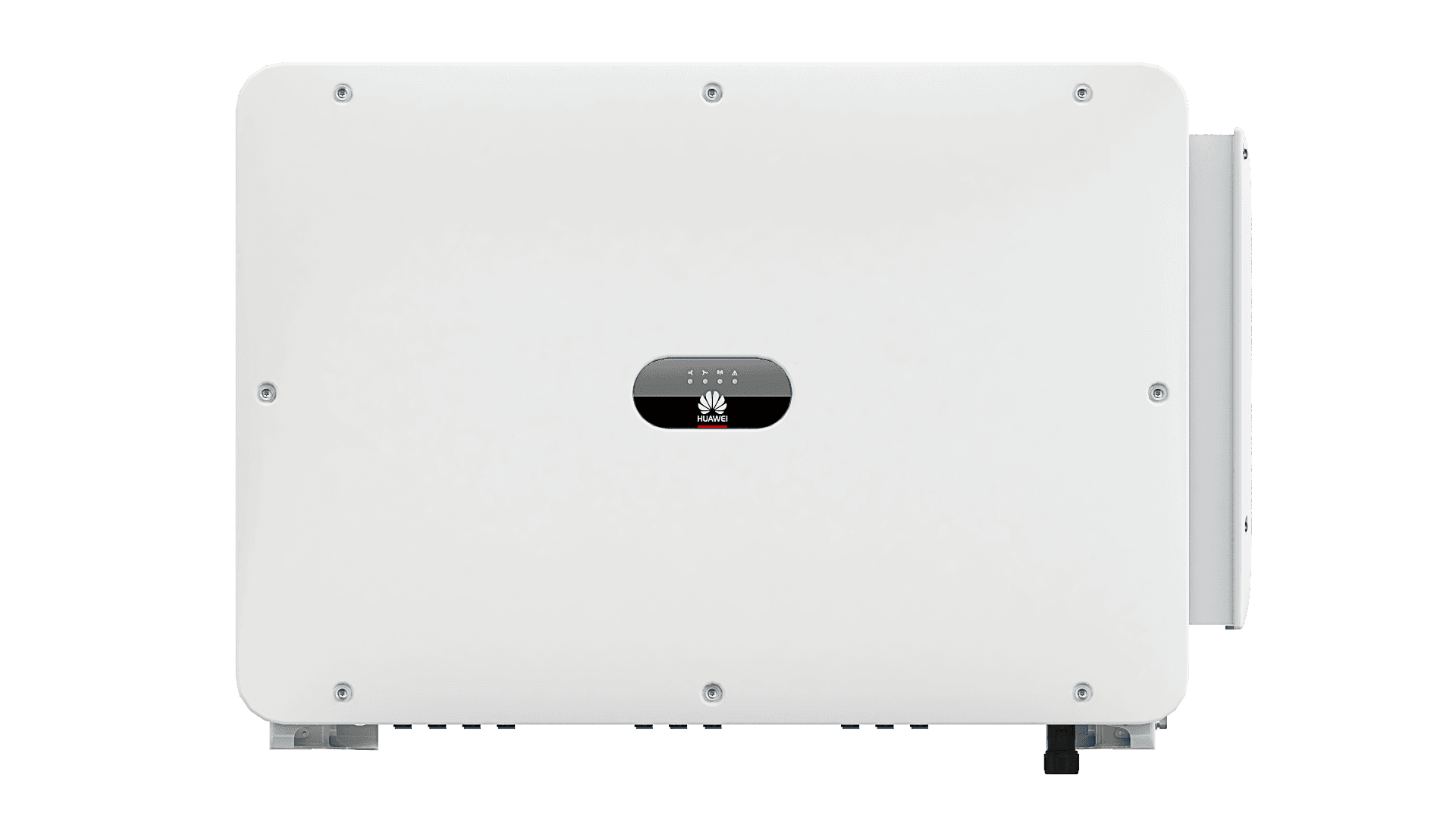

# Huawei Inverter SUN2000-330KTL-H1 - Art.No.: 1076532

## Specifications

- **Brand**: Huawei
- **HS code**: 85044084
- **Manufactor**: Huawei
- **Net Height**: 732 MILLIMETER
- **Net Length**: 395 MILLIMETER
- **Net Weight**: 112 KILOGRAM
- **Net Width**: 1048 MILLIMETER
- **Origin**: China
- **Arc-fault circuit interrupter**: Yes
- **Display**: Yes
- **Ingress Protection**: IP66
- **Max. output apparent power**: 330000 VOLTAMPERE
- **Max. output current**: 238.2 AMPERE
- **Max. output power**: 330000 WATT
- **Number of MPPT**: 6
- **Number of phases**: 3 phase
- **System**: Huawei H1
- **Type**: String
- **Warranty in Years**: 5

Huawei launches its line of powerful SUN2000-330KTL-H1 inverters. These are three-phase solar inverters for industrial photovoltaic installations. This 330 kW inverter features 6 MPPT trackers for versatile adaptation to the requirements of each installation. Additionally, this inverter enables intelligent monitoring of 20 strings and supports MBUS. The product is characterized by a strong investment in R&D, resulting in a powerful solar inverter with a pure sine wave, state-of-the-art, compact, and suitable for networking.


Specifications Huawei SUN2000-330KTL-H1:


- **Type**: Three-phase inverter designed for industrial photovoltaic installations in businesses and enterprises.
- **Power**: High power of 330 kW, within Huawei's range of network inverters.
- **MPPT**: Includes 6 MPPT trackers, each with two inputs enabling monitoring of 20 strings. This feature provides great flexibility for solar installations, as up to 6 groups of solar panels can be connected, each with different tilt or orientation, or even panels of different powers and models.
- **Additional Features**:
- Support for intelligent diagnosis of I-V curves
- Safe and practical maintenance
- Integrated residual current intensity monitoring
- Protection against IP66
- Type II surge protectors for both DC and AC

## Downloads

- [Huawei SUN2000  250KTL 280KTL 300KTL 330KTL Series User Manual EN 1](https://cdn.estg.eu/p/1/5/a/1/15a1cb6a80e75dc58e668b12a9a8b971ff112bf0_Huawei_SUN2000__250KTL_280KTL_300KTL_330KTL_Series_User_Manual_EN_1.pdf)
- [Datasheet Huawei SUN2000 330KTL H1 EN 1](https://cdn.estg.eu/p/7/7/d/c/77dc6d1fdd51a544efd3fc8252e4de9725567ebb_Datasheet_Huawei_SUN2000_330KTL_H1_EN_1.pdf)
