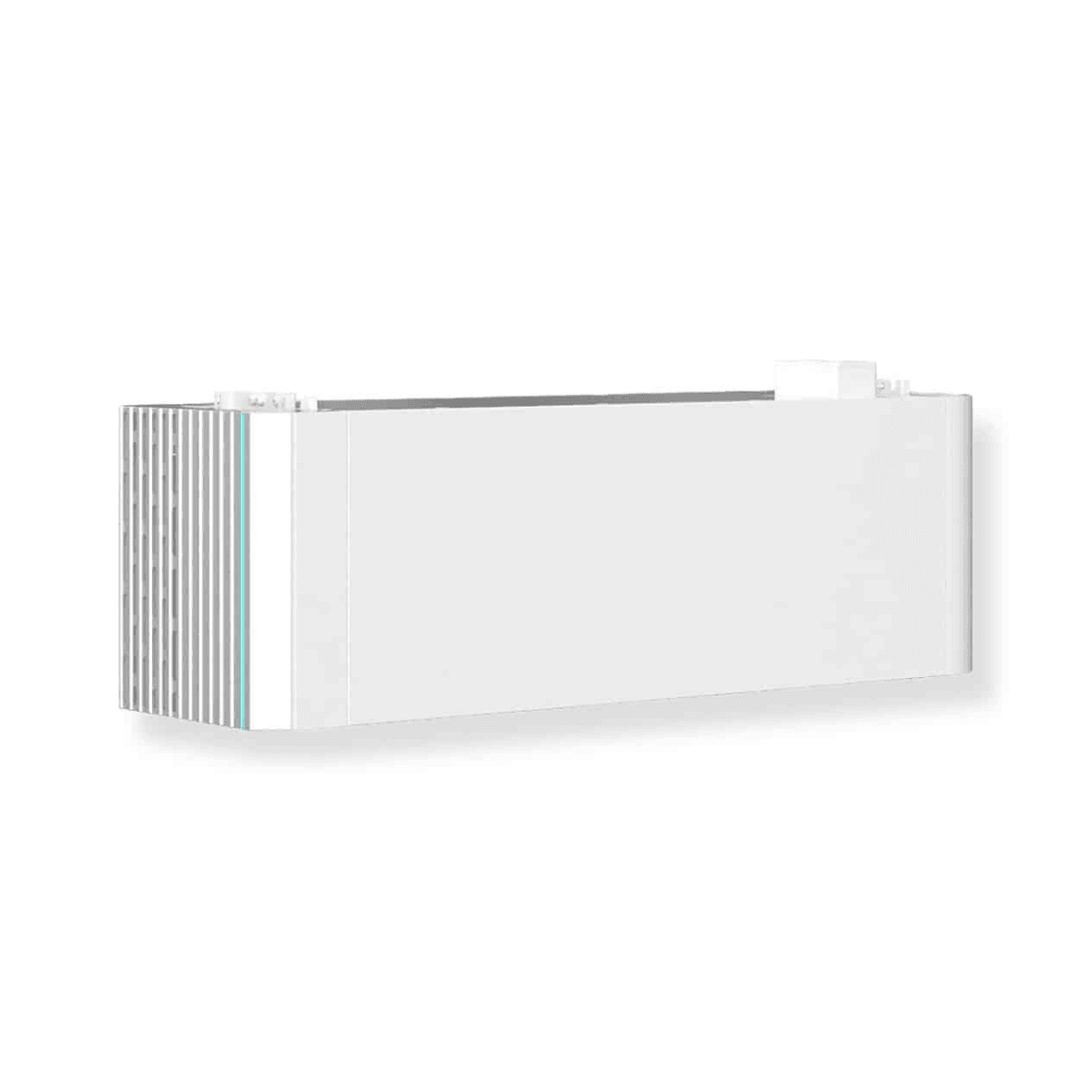

SigenStor BAT 10.0 Battery Module

The SigenStor BAT 10.0 is a modular high-voltage battery with a storage capacity of 10 kWh, designed as the building block of the SigenStor energy storage system. This battery module enables flexible configuration and expansion of storage capacity for both residential and commercial applications. The battery module is compatible with, among others, the SigenStor Energy Controller, SigenStor BC, Sigen hybrid SP2 and TP2 inverters, and Sigenergy AC and DC EV chargers.

Key Features

• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Total Capacity: 9.04 kWh
• Usable Capacity: 8.76 kWh
• Maximum Charge/Discharge Power: 4600 W (continuous) / 6900 W (peak)
• Voltage Range (3-phase): 600 - 900 V
• Cooling: Natural convection
• Dimensions (WxHxD): 767 x 270 x 265 mm
• Weight: 78 kg

Main Benefits

• Excellent Scalability: The modular design allows stacking up to 6 battery modules per system, making it easy for storage capacity to grow with energy needs. Note: in combination with a SigenStor DC charger, you can stack a maximum of 5 modules per system.
• High Safety Standards: Features 5-layer battery protection, including an integrated fire extinguisher and thermal sensors, ensuring safe and reliable operation.
• 100% Depth of Discharge (DoD): Allows for maximum utilization of stored energy, increasing system efficiency.
• Easy Installation: Plug-and-play functionality with pre-assembled plug connections simplifies installation and reduces time on site.
• Smart Monitoring: The mySigen app provides real-time insights into battery performance and status, enabling professional remote management.
• Flexible Compatibility: Suitable for both 1-phase and 3-phase systems and can be integrated with various inverters.

Applications

The SigenStor BAT 10.0 is suitable for creating intelligent energy storage systems in various environments. Ideal for residential projects to optimize self-consumption and serve as a backup power supply. Additionally, the system is suitable for small-scale commercial applications focusing on peak shaving and reducing energy costs.

Warranty and Durability

This product has a long service life with a cycle stability of 10,000 cycles (at 25 °C and 0.5C C-rate). The warranty on the SigenStor BAT 10.0 is 10 years. The system is protected against weather influences with an IP66 rating.
