title: "APSystems DS3 Micro-Inverter"
description: "APSystems DS3 Micro-Inverter  | One-Stop-Shop | +50 A-brands | Exclusively for Professionals"

type: product_page

---

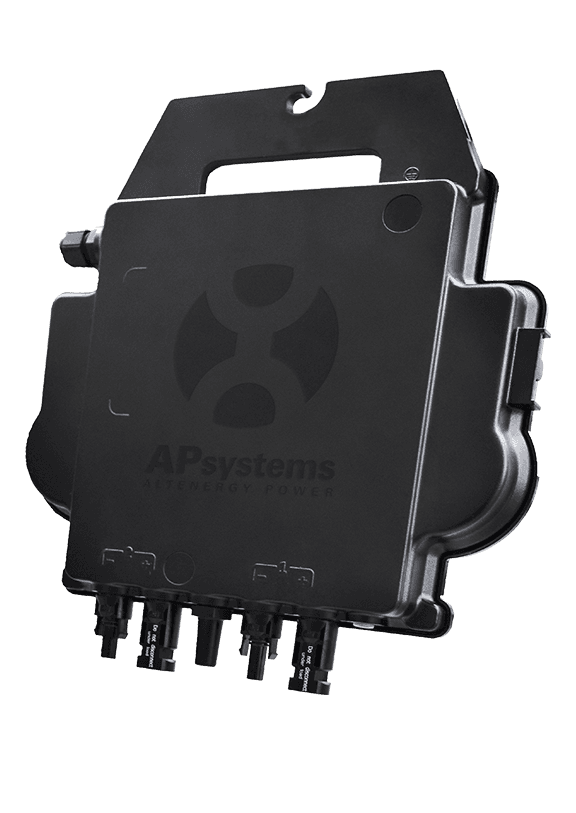

# APSystems DS3 Micro-Inverter - Art.No.: 117018

## Specifications

- **Brand**: APSystems
- **HS code**: 85044085
- **Manufactor**: APSystems
- **Net Height**: 218 MILLIMETER
- **Net Length**: 42.5 MILLIMETER
- **Net Weight**: 3 KILOGRAM
- **Net Width**: 263 MILLIMETER
- **Origin**: China
- **Ingress Protection**: IP67
- **Number of phases**: 1 phase
- **Warranty in Years**: 2

APsystems’ 3rd generation of dual-module microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.



The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication. An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.



With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.



- One microinverter connects to two modules
- Max output power reaching 880VA
- Two input channels with independent MPPT
- Reactive Power Control
- Maximum reliability, IP67
- Encrypted Zigbee Communication
- Safety protection relay integrated


To qualify for the best warranty coverage, APsystems microinverters must be monitored via the EMA portal. Please consult our general warranty terms at [emea.APsystems.com](http://emea.apsystems.com/).





See all our [APSystems inverters](https://www.estg.eu/en-gb/inverters/apsystems/)

## Downloads

- [Manual APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/e/a/d/7/ead7f21a1c07eb0f45a55a3926999fc76380624a_Manual_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [Certificate CS33786 Europe CE RED APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/2/0/e/7/20e7bdf6f46b9ff3477ac6fa9c2b06da7b026f44_Certificate_CS33786_Europe_CE_RED_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [Certificate EN50549 1 APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/d/3/a/3/d3a3f7a4e9aaca08b8e7b57566ca4aa5caca3b6c_Certificate_EN50549_1_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [APsystems DS3 Datasheet   EN](https://cdn.estg.eu/p/6/b/9/2/6b924ae24140def9327e7dcd2a1aaa912ce6bc48_APsystems_DS3_Datasheet___EN.pdf)
