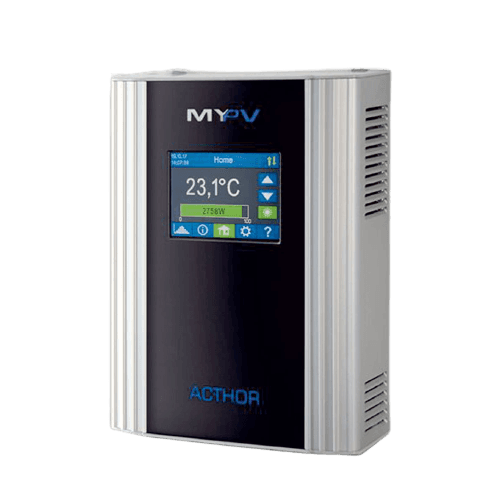

# My-PV AC•THOR 9s - Art.No.: 20-0300

## Specifications

- **Barcode**: 9120095460099
- **Brand**: My-PV
- **HS code**: 85044095
- **Manufactor**: MyPV
- **Net Height**: 135 MILLIMETER
- **Net Length**: 195 MILLIMETER
- **Net Weight**: 2.3 KILOGRAM
- **Net Width**: 65 MILLIMETER
- **Origin**: Austria
- **Warranty in Years**: 2

Hot water heating and space heating with solar power


AC•THOR 9s is a 0 - 9 kW linearly controlled photovoltaic power manager for hot water, electric heat sources and optional space heating.


Simple & efficient: AC•THOR 9s controls up to 3 electrical heat sources depending on the availability of PV energy and heat demand. And that for both hot water, as well as for space heating. It ensures your personal living comfort fully automatically. In a residential building that is built or renovated according to current energy standards, AC•THOR 9s replaces conventional, water-based building installations. Missing residual energy can be obtained from the public grid.


Of course, AC•THOR 9s can also be integrated into conventional, water-based systems such as buffer storages. Its flexibility leaves nothing to be desired. Thanks to the built-in touch display, it can be operated without any additional devices at any time and it is easy to install.


The AC•THOR 9s is particularly suitable for:


- Single and multi-family houses
- Agricultural holdings
- Commercial and industrial applications
- Hotels and tourism businesses
- District heating networks


Advantages


- Linear power control 0- 9 kW
- 3 controllable outputs
- For 3-phase immersion heaters with common neutral conductor
- Easiest heat production in three zones 3 x 3 kW
- Also combinable with heat pumps
- Two-zone space heating possible
- Minimum spatial requirements
- A system compatible with various inverter manufacturers, battery systems and smart homes
- Up to 85 % PV self-consumption without battery


Plug & Play - All connections pluggable!


- No time-consuming wiring
- No clamping points, no PG cable glands
- No cumbersome opening of a housing


Technical data


- Mains voltage: 3 x 230 V, 50 Hz
- Linear power-control: 0-3,000 W, three outputs, max. 9,000 W
- Mains connection: 3-phase with neutral conductor
- Load connections: plug-in contacts
- Display: Color Touch Screen 2,83"
- Dimensions (L x H x D): 135 x 195 x 65 mm

## Downloads

- [Datasheet MyPV  AC THOR 9 s PV Power Manager thermal 3PH 9kW 2021 ENG](https://cdn.estg.eu/p/7/9/3/6/7936fe2a81f05cf532647580e9e104b07664f979_Datasheet_MyPV__AC_THOR_9_s_PV_Power_Manager_thermal_3PH_9kW_2021_ENG.pdf)
- [MyPV CloudConnect 2020 ENG](https://cdn.estg.eu/p/2/b/9/f/2b9f7837cddce133bd2a67468d498965eb5a8cd7_MyPV_CloudConnect_2020_ENG.pdf)
- [Integrating with SMA MyPV AC THOR AC ELWA E Sunny Home Manager or Energy meter 2021 ENG](https://cdn.estg.eu/p/b/f/6/e/bf6e560ea1295de08d85188695c30144697ee506_Integrating_with_SMA_MyPV_AC_THOR_AC_ELWA_E_Sunny_Home_Manager_or_Energy_meter_2021_ENG.pdf)
- [EU declaration of conformity MyPV  AC THOR 9 s PV Power Manager thermal 3PH 9kW 2021 ENG](https://cdn.estg.eu/p/e/d/3/7/ed37d17fe3ea43978dd2bb5fe91d07d60671b4cd_EU_declaration_of_conformity_MyPV__AC_THOR_9_s_PV_Power_Manager_thermal_3PH_9kW_2021_ENG.pdf)
- [Instruction manual My PV AC Thor 9S 2022 INT DEU ESP ENG FRA NED](https://cdn.estg.eu/p/3/1/f/f/31ff2fdca0137379562c5319724b9b6643156b37_Instruction_manual_My_PV_AC_Thor_9S_2022_INT_DEU_ESP_ENG_FRA_NED.pdf)
- [Documentation AC THOR or AC ELWA E with Sungrow EN220901](https://cdn.estg.eu/p/c/5/b/f/c5bfb0ca5e89b2c3675c6017b1646f3ce5b221a5_Documentation_AC_THOR_or_AC_ELWA_E_with_Sungrow_EN220901.pdf)
- [Documentation AC THOR or AC ELWA E with Kostal EN220825](https://cdn.estg.eu/p/0/1/f/c/01fc83d34abb97f457b428b19f403d6ab4e0fe10_Documentation_AC_THOR_or_AC_ELWA_E_with_Kostal_EN220825.pdf)
