# Huawei SmartLogger 3000A03EU with mbus - Art.No.: 61200

## Specifications

- **Brand**: Huawei
- **HS code**: 85176200
- **Manufactor**: Huawei
- **Net Height**: 160 MILLIMETER
- **Net Length**: 44 MILLIMETER
- **Net Weight**: 3.5 KILOGRAM
- **Net Width**: 225 MILLIMETER
- **Origin**: China
- **Type**: Energy management
- **Warranty in Years**: 2

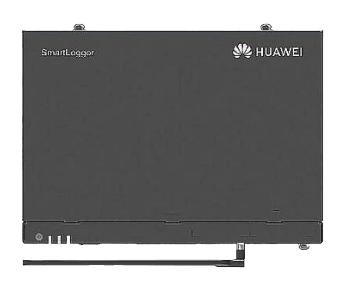

# **Huawei SmartLogger 3000A03EU with mbus**


**Attention:** This version of the Huawei SmartLogger 3000A03EU includes the PLC module required to connect to inverters that use PLC. There is also a version without PLC: the [Huawei SmartLogger 3000A without PLC](https://www.estg.eu/en-gb/huawei-smartlogger-3000a-zonder-plc/).


## **Huawei SmartLogger 3000A Connectivity**


The SmartLogger 3000A supports multiple communication interfaces, including internet (WAN), local network (LAN), RS485, MBUS (compatible with PLC, including the required module), mobile networks (2G/3G/4G), and there are also digital and analog options. This allows for flexible connection options to collect data from different devices and modules.


## **Capacity**


The SmartLogger 3000A can connect up to 200 devices, with a maximum of 150 inverters. This capacity enables monitoring and data collection from a significant number of solar modules and inverters in a solar energy system, making it ideal for solar installers to collect and read remote diagnostics and performance information.


## **SmartLogger 3000A Installation and Operation**


The SmartLogger 3000A is lightweight and compact. With a weight of only 2 kilograms, there are flexible mounting options, including direct wall attachment, mounting on a DIN rail, or placement on a stable and flat surface.


The SmartLogger features three LEDs that indicate different statuses and provide visual feedback on the device's operation. The installer can configure the system via an integrated web portal or the app. The presence of a USB2.0 port allows for additional connectivity options or potential data storage.

## Downloads

- [Datasheet Huawei SmartLogger3000A 2020 ENG](https://cdn.estg.eu/p/1/2/f/7/12f7dcf441e7eebb19b51f1418d57baa3cdff2c1_Datasheet_Huawei_SmartLogger3000A_2020_ENG.pdf)
- [User Manual Huawei SmartLogger3000A 2020 ENG](https://cdn.estg.eu/p/d/d/d/2/ddd24185ff833d5500599a1c45c737b9833a2af7_User_Manual_Huawei_SmartLogger3000A_2020_ENG.pdf)
- [Datasheet Huawei SmartLogger3000A 2020 NED](https://cdn.estg.eu/p/9/e/6/5/9e6571990712e1b2c60b9b43a06afdc5739bed41_Datasheet_Huawei_SmartLogger3000A_2020_NED.pdf)
- [Datasheet Huawei SmartLogger3000A 2020 DEU](https://cdn.estg.eu/p/f/0/c/3/f0c395325fb769bc7965c9ba64b0b1563054146f_Datasheet_Huawei_SmartLogger3000A_2020_DEU.pdf)
- [Datasheet Huawei SmartLogger3000A 2020 FRA](https://cdn.estg.eu/p/6/4/5/a/645a0297d900a5befb0206a95a4901bed0406e8a_Datasheet_Huawei_SmartLogger3000A_2020_FRA.pdf)
- [Datasheet Huawei SmartLogger3000A 2020 ITA](https://cdn.estg.eu/p/2/a/1/1/2a110e8289cefb93fd46b642a47b5d1a74577550_Datasheet_Huawei_SmartLogger3000A_2020_ITA.pdf)
