title: "Sungrow AC22E-01 22kW EV Charger incl. MID Meter - 7m"
description: "Sungrow 22kW 3-phase EV charger for installers. Features maximum solar energy use via PV integration, smart charging management, MID meter, and 7m cable."

type: product_page

---

# Sungrow 22kW 3-Phase Hybrid EV Charger incl. MID Meter - 7 M cable - Art.No.: A0CH1083

## Specifications

- **Brand**: Sungrow
- **HS code**: 85371091
- **Manufactor**: Sungrow
- **Net Height**: 346 MILLIMETER
- **Net Length**: 125 MILLIMETER
- **Net Weight**: 6.7 KILOGRAM
- **Net Width**: 214 MILLIMETER
- **Origin**: China
- **Communication**: 4G, Ethernet
- **Features**: RFID
- **Ingress Protection**: IP65
- **Load balancing**: Yes
- **Max. output current**: 32 AMPERE
- **Max. output power**: 22000 WATT
- **Number of phases**: 1 phase, 3 phase
- **Segment**: Residential
- **Socket type**: Cable
- **System**: Sungrow EV
- **Warranty in Years**: 3

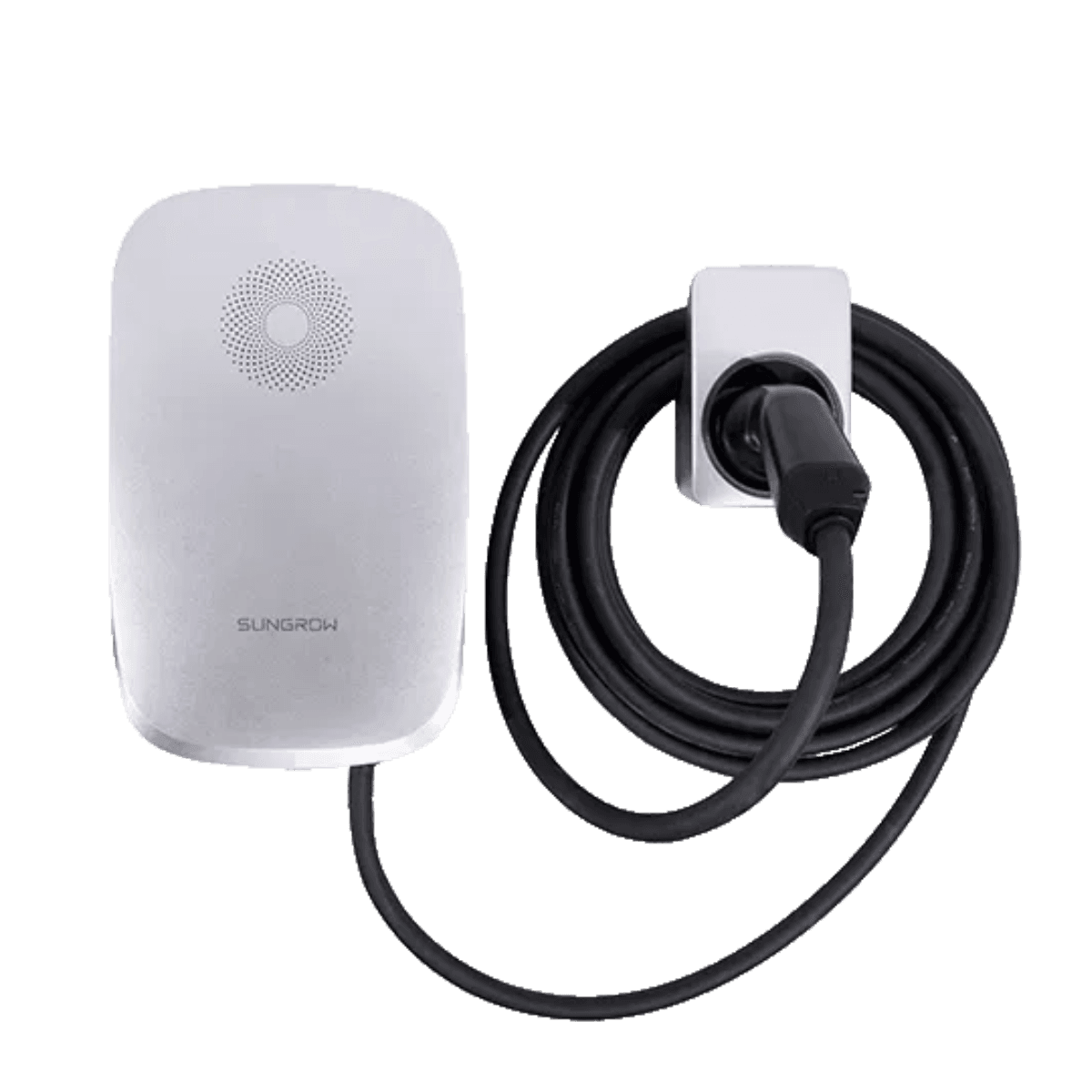

# **Sungrow 22kW 3-Phase Hybrid EV Charger including MID Meter (7 M Cable, Type 2)**


This advanced 3-phase AC EV charger, with a maximum capacity of 22 kW, offers a smart, robust solution for fast and efficient electric vehicle charging. The charger is specifically designed for seamless integration with Sungrow PV and battery systems, enabling maximum use of self-generated solar energy. The integrated MID meter ensures precise registration of power consumption, which is essential for billing or management purposes. The fixed 7-meter charging cable with a Type 2 connector offers installers extra flexibility during mounting.


## **Key Features and System Components**


- **Charging capacity:** Adjustable up to a maximum of 22 kW (3-phase, 32 A). Also adjustable to 11 kW (3-phase) and 7.4 kW (1-phase).
- **Connection:** Fixed 7-meter Type 2 charging cable (suitable for most EVs).
- **Meter:** Integrated MID meter for accurate measurement of power consumption.
- **Communication:** Supports WLAN, Ethernet, and RS485; 4G optional.
- **Smart Management:** Supports OCPP 1.6J protocol for integration with external platforms.
- **Safety:** Integrated 6 mA DC fault current detection and protection against overcurrent and overtemperature.
- **User Interface:** Operation and visualisation via iSolarCloud App or iEnergy Charge App, and RFID access.


## **Main Advantages**


- **Maximum Green Energy Utilisation:** Enables PV surplus charging in combination with Sungrow SHRT hybrid inverters, such as the **[Sungrow SH5.0RT-20 3-Phase Residential Hybrid Inverter](https://www.estg.eu/en-gb/p/ASH00129),** which maximises self-consumption (in combination with a Sungrow SBR high-voltage LFP battery system).
- **Smart Load Balancing (ALM):** Prevents grid overload by automatically adjusting the charging power (Adaptive Load Management).
- **Commercially Accurate Metering:** The built-in MID meter ensures compliant and accurate energy registration for billing or monitoring.
- **Weatherproof and Durable:** With an IP65 rating and UV resistance, the device is suitable for both indoor and outdoor use in demanding environments.
- **Flexible Charging Modes:** Choice of Eco-charging, Fast-charging, Timed-charging, and Customised charging, among others.
- **Ease of Installation:** Simple wall mounting and plug-and-play compatibility within the Sungrow ecosystem.


## **Applications**


This charging station is highly suitable for residential installations with a 3-phase connection, small commercial use, and commercial projects that require an integrated solution with solar energy and storage. It is the ideal choice for installers who want to offer a complete PV+ESS+Charger solution, focusing on efficiency and energy management.


## **Warranty and Durability**


- **Protection Rating:** **IP65** (dust-tight and protected against water jets), IK10 (high protection against mechanical impact).
- **Operating Temperature:** Reliable operation from -30 ∘ C to +50 ∘ C.
- **Warranty:** Standard manufacturer's warranty on the product is 3 years (check current warranty conditions for specific markets).
- **Maintenance:** Low maintenance thanks to a robust design and smart Over-The-Air (OTA) software updates.

## Downloads

- [AC22E 01 Datasheet](https://cdn.estg.eu/p/3/f/1/3/3f133d3aee989d9741b2f8c27dcc198684679b39_AC22E_01_Datasheet.pdf)
- [AC22E 01 User Manual](https://cdn.estg.eu/p/7/1/e/d/71ed37b7ee46eeafe9187702490b7c491381b1b1_AC22E_01_User_Manual.pdf)
- [AC22E 01 Installation Guide](https://cdn.estg.eu/p/a/3/6/e/a36ea1e48f8e47ea68aebb7f4a66a03af1e95db1_AC22E_01_Installation_Guide.pdf)
