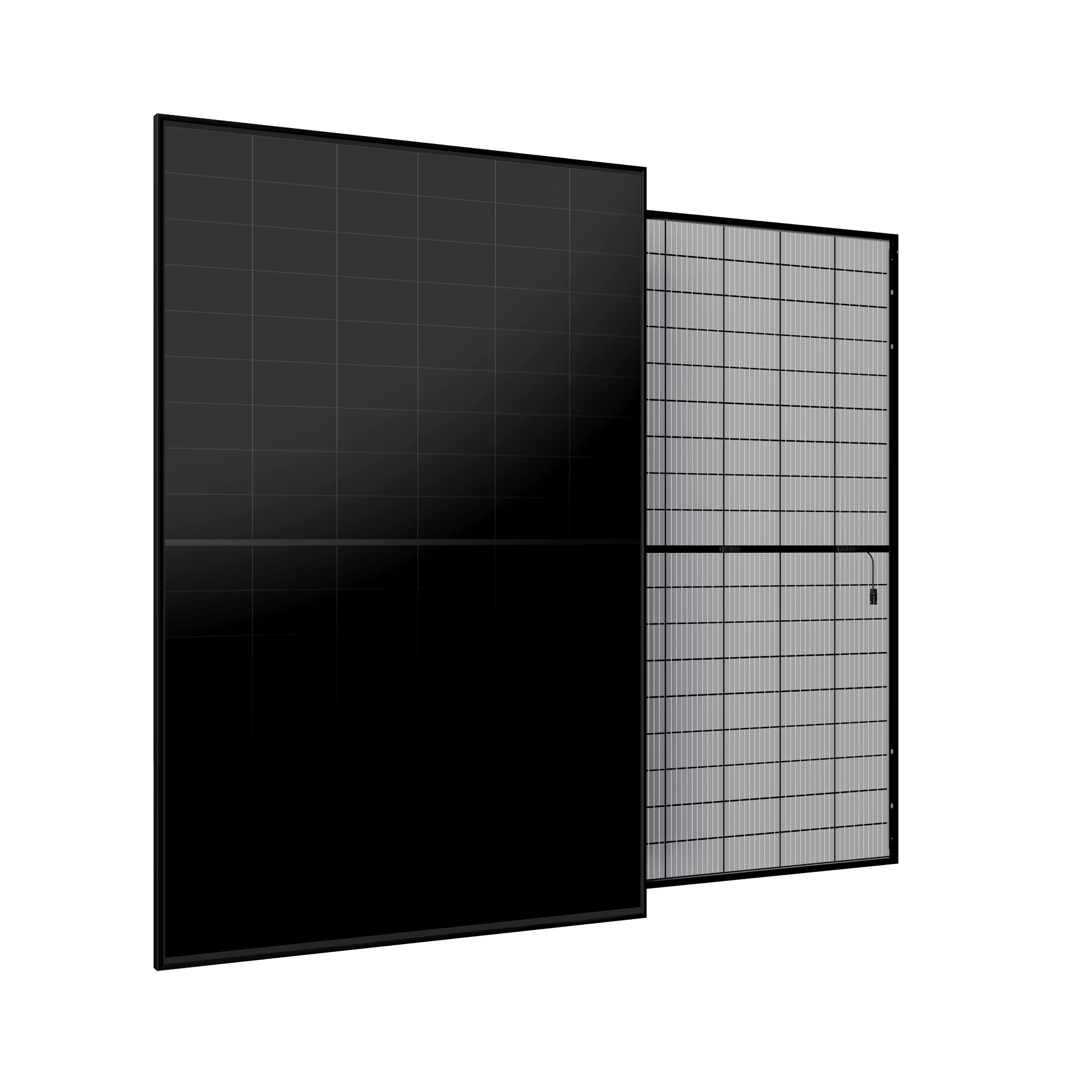

# AIKO Neostar N-Type ABC 465W Full Black dual glass (GEN 2) Solar Panel - Art.No.: AIKO-A465-MAH54DB

## Specifications

- **Brand**: Aiko
- **HS code**: 85414300
- **Manufactor**: Aiko
- **Net Height**: 30 MILLIMETER
- **Net Length**: 1757 MILLIMETER
- **Net Weight**: 24.5 KILOGRAM
- **Net Width**: 1134 MILLIMETER
- **Origin**: China
- **Backsheet**: white
- **Cell technology**: N-type ABC
- **Connector type**: MC4-EVO2
- **Max. output power**: 465 WATT
- **Number of bypass diodes**: 3
- **Number of cells**: 54
- **Color frame**: Black
- **Type**: Glass-Glass
- **Glass with anti-reflection coating**: Yes
- **Warranty in Years**: 25

## AIKO Neostar N-Type ABC 465W Full Black Dual Glass (GEN 2) Solar Panel


The **AIKO Neostar N-Type ABC 465W Full Black Dual Glass (GEN 2) Solar Panel** is a state-of-the-art solar module designed for high performance, durability, and premium aesthetics. Leveraging advanced **N-Type ABC cell technology**, this panel offers superior efficiency, minimal degradation, and long-term reliability, making it ideal for residential solar installations.


### Key Features


- **High Efficiency:** Achieves up to **23.3% efficiency**, maximizing energy production in a compact space.
- **Advanced N-Type ABC Technology:**
- Superior temperature performance.
- Reduced power loss in shaded conditions.
- Higher energy yield compared to conventional P-Type panels.
- **Dual-Glass Construction:**
- **2.0mm coated semi-tempered glass** on both sides for enhanced durability.
- Improved resistance to environmental stress factors.
- **Full Black Aesthetic:**
- Sleek, modern design for seamless integration into any rooftop.
- **Superior Longevity & Warranty:**
- **30-year linear performance warranty.**
- **≤1% first-year degradation** and **≤0.35% annual degradation from year 2-30.**
- **High Mechanical Load Resistance:**
- **Front Load:** 5400Pa
- **Back Load:** 2400Pa
- **Partial Shading Optimization:**
- Reduces power loss under shaded conditions, maintaining high performance.
- **Micro-Crack Resistance:**
- Ensures long-term efficiency and durability.


### Technical Specifications


- **Maximum Power Output (Pmax @ STC):** **465W**
- **Voltage at Maximum Power (Vmp @ STC):** **34.68V**
- **Current at Maximum Power (Imp @ STC):** **13.41A**
- **Open Circuit Voltage (Voc @ STC):** **41.12V**
- **Short Circuit Current (Isc @ STC):** **14.29A**
- **Module Efficiency:** **23.3%**
- **Panel Dimensions:** **1757 x 1134 x 30 mm**
- **Weight:** **24.5 kg**
- **Cell Type:** **108-cell (6x18) N-Type ABC technology**
- **Junction Box:** **IP68, with 3 bypass diodes**
- **Connector Type:** **MC4-EVO2**
- **Maximum System Voltage:** **DC 1500V**
- **Operating Temperature:** **-40°C to +85°C**
- **Fire Rating:** **IEC Class A**


### Applications


The **AIKO Neostar 465W Full Black Dual Glass Solar Panel** is perfect for:


- **Residential rooftops** requiring high efficiency and premium aesthetics.
- **Solar projects in extreme weather conditions**, benefiting from its **robust dual-glass construction**.
- **Shading-prone areas**, thanks to its **optimized partial shading performance**.


### Conclusion


The **AIKO Neostar N-Type ABC 465W Full Black Dual Glass (GEN 2) Solar Panel** combines **cutting-edge efficiency, superior durability, and sleek aesthetics**. With its **dual-glass structure, N-Type ABC cell technology, and industry-leading warranty**, it is an excellent choice for long-term, high-performance solar energy generation. For **residential use**, this module delivers maximum energy output and reliability.

## Downloads

- [Aiko 440 470 MAH54DB Datasheet](https://cdn.estg.eu/p/2/6/6/3/26635465af91c2e196f1195a21675095cad9d7e0_Aiko_440_470_MAH54DB_Datasheet.pdf)
