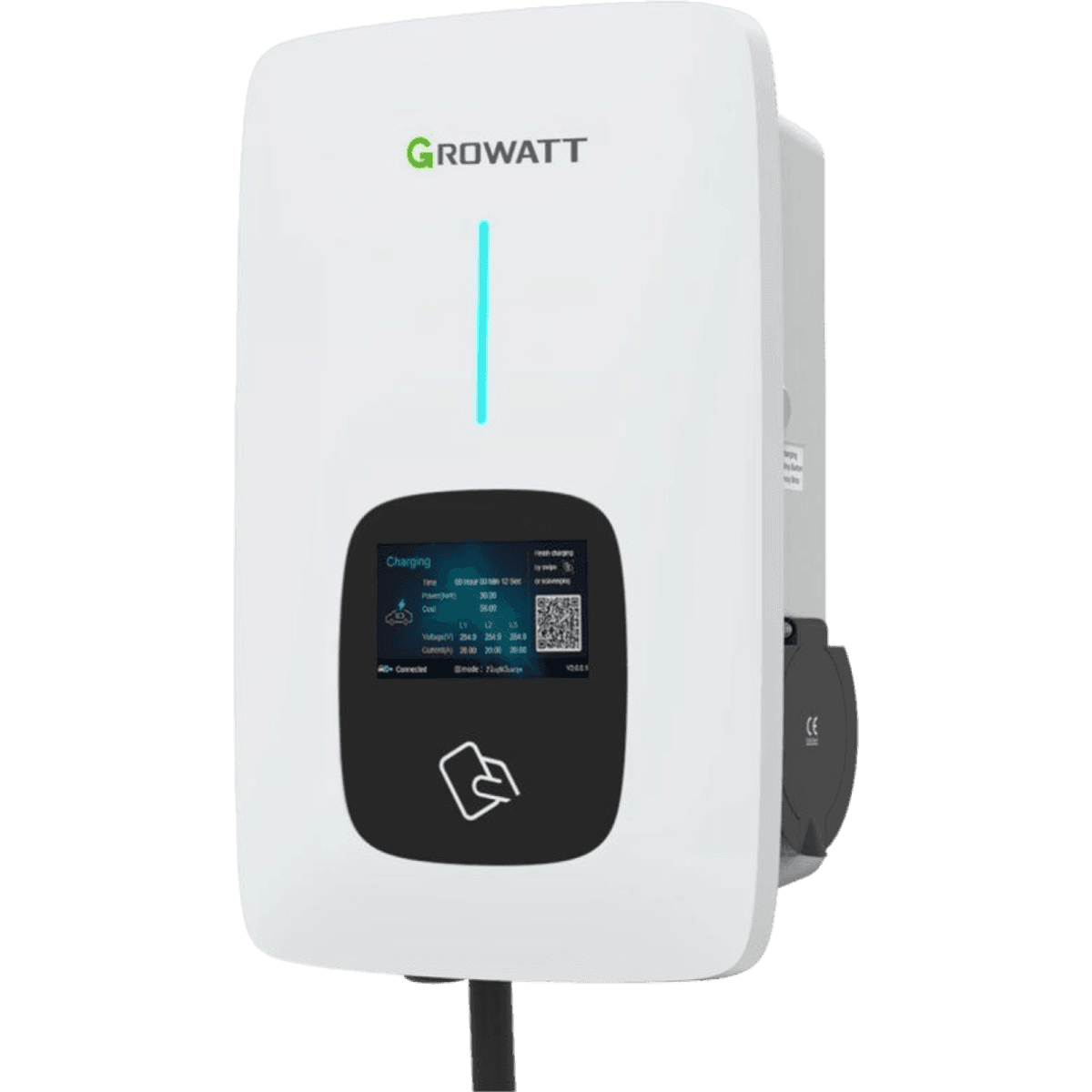

# Growatt EV-Charger THOR 22AS-P-V1  (WIFI) - Art.No.: CS00.0009600

## Specifications

- **Brand**: Growatt
- **HS code**: 85044060
- **Manufactor**: Growatt
- **Net Height**: 164 MILLIMETER
- **Net Length**: 240 MILLIMETER
- **Net Weight**: 12.5 KILOGRAM
- **Net Width**: 380 MILLIMETER
- **Origin**: China
- **Ingress Protection**: IP65
- **Load balancing**: Yes
- **Max. output current**: 32 AMPERE
- **Max. output power**: 22 KILOWATT
- **Number of phases**: 3 phase
- **Segment**: Residential
- **Socket type**: Cable
- **System**: Growatt THOR
- **Warranty in Years**: 3

## Growatt THOR 22AS-P-V1


The Growatt THOR series presents the THOR 22AS-P-V1 (WIFI) model, an intelligent three-phase AC charger specifically designed with advanced technology to efficiently supply electric vehicles with power. This charging station stands out with its user-friendly interface, combined with versatile features such as control, billing, and various communication options, enabling seamless connection with back-office servers. This allows users to easily make reservations and process payments through the specially developed mobile phone app.


**Please note**: this model is not compatible with the GroHome ecosystem.


### Features of Growatt THOR 22AS-P-V1 (WIFI)


- **Universal Compatibility**: The Growatt THOR 22AS-P-V1 charging station is designed to collaborate with all brands of electric vehicles, providing users with flexibility in their choice of vehicle.
- **Sustainable Energy Integration**: It's possible to integrate the charger into both existing and newly installed photovoltaic systems. This enables users to benefit from 100% renewable energy, specifically by utilizing excess solar power.
- **Smart App Control**: Thanks to the app, users can easily manage and schedule charging sessions, giving them full control over the charging process.
- **Robust Design**: With an IP65 rating, this charger is designed to operate both indoors and outdoors.

## Downloads

- [THOR 11kW 22kW AC EV Charger User Manual EN 202304](https://cdn.estg.eu/p/9/6/f/0/96f0c0ccdbe4e7304898445203421aedd999ef0b_THOR_11kW_22kW_AC_EV_Charger_User_Manual_EN_202304.pdf)
- [THOR 11kW 22kW AC EV Charger Datasheet EN 202304](https://cdn.estg.eu/p/a/9/0/1/a901aa896bda9b227487e72b556a158a67ad2b57_THOR_11kW_22kW_AC_EV_Charger_Datasheet_EN_202304.pdf)
