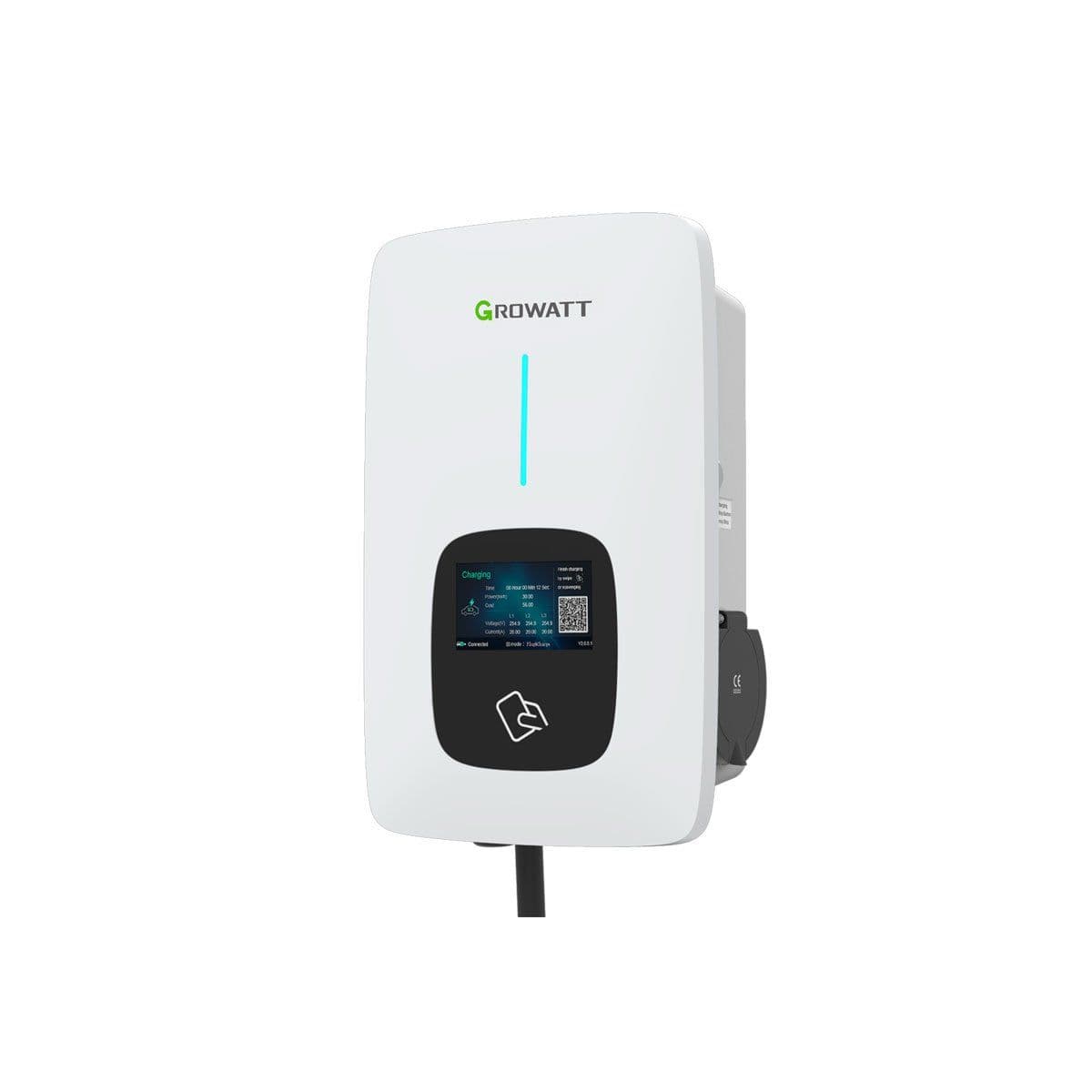

# Growatt EV Charger THOR 11AS-S-V1 (WiFi, RF) - Art.No.: CS00.0018900

## Specifications

- **Brand**: Growatt
- **HS code**: 85044060
- **Manufactor**: Growatt
- **Net Height**: 164 MILLIMETER
- **Net Length**: 240 MILLIMETER
- **Net Weight**: 10 KILOGRAM
- **Net Width**: 380 MILLIMETER
- **Origin**: China
- **Ingress Protection**: IP65
- **Load balancing**: Yes
- **Max. output current**: 16 AMPERE
- **Max. output power**: 11 KILOWATT
- **Number of phases**: 3 phase
- **Segment**: Residential
- **Socket type**: Socket
- **System**: Growatt THOR

## Growatt EV Charger THOR 11AS-S-V1 (WiFi, RF)


The Growatt THOR 11AS-S-V1 is a powerful 3-phase AC charger, designed for smart and efficient charging of electric vehicles. This model, equipped with a universal Type 2 socket, offers maximum flexibility and can be seamlessly integrated with new or existing solar panel installations. This charger, equipped with an RF function, can be used in conjunction with the **[Growatt Smart Energy Management System](https://www.estg.eu/en-gb/p/MR00.0034300)** within a Growatt Ecosystem.


### Key benefits


- **Charging with solar energy:** The charger can be linked to a PV system to charge an electric vehicle with 100% solar power. This maximizes self-consumption and significantly reduces charging costs.
- **Universal socket:** The Type 2 socket makes the charger compatible with all Type 1 and Type 2 charging cables, allowing virtually any electric vehicle to be charged.
- **Smart control and monitoring:** Via the built-in WiFi and the ShinePhone app, the charging status can be monitored remotely. Charging sessions can be easily started, stopped, and scheduled.
- **Dynamic load balancing:** The charger automatically adjusts the charging power based on the real-time energy consumption in the building. This prevents overloading the main connection and guarantees safe operation.
- **Authorised use:** Thanks to the included RFID card, access to the charger can be restricted to authorised users, preventing unwanted use.


### Applications


With its 11 kW 3-phase charging power, the Growatt THOR 11AS-S-V1 is perfect for residential locations with a 3-phase connection and for small business applications, such as at the office. The charger is suitable for both wall mounting and pole mounting, allowing it to be installed in various environments. Its robust construction makes it suitable for both indoor and outdoor use.


### Warranty and durability


The Growatt THOR 11AS-S-V1 comes with a 3-year manufacturer's warranty. The housing has an IP65 rating, meaning it is fully dust and water-resistant, guaranteeing reliable operation in all weather conditions. The operational temperature range is from -25°C to +50°C.

## Downloads

- [THOR 11 22AS P S  V1 Datasheet EN 202402](https://cdn.estg.eu/p/f/3/d/9/f3d9aae1fb176bdb4a98b1881e0dcfdf51558f76_THOR_11_22AS_P_S__V1_Datasheet_EN_202402.pdf)
- [THOR 11kW 22kW AC EV Charger User Manual EN 202304](https://cdn.estg.eu/p/3/8/7/1/3871be856a7234cc5c259d0d59688486b4b292b8_THOR_11kW_22kW_AC_EV_Charger_User_Manual_EN_202304.pdf)
- [THOR AC EV Charger RCM](https://cdn.estg.eu/p/a/d/c/8/adc8d83b9655c462d035fd27f6696be30945420a_THOR_AC_EV_Charger_RCM.pdf)
