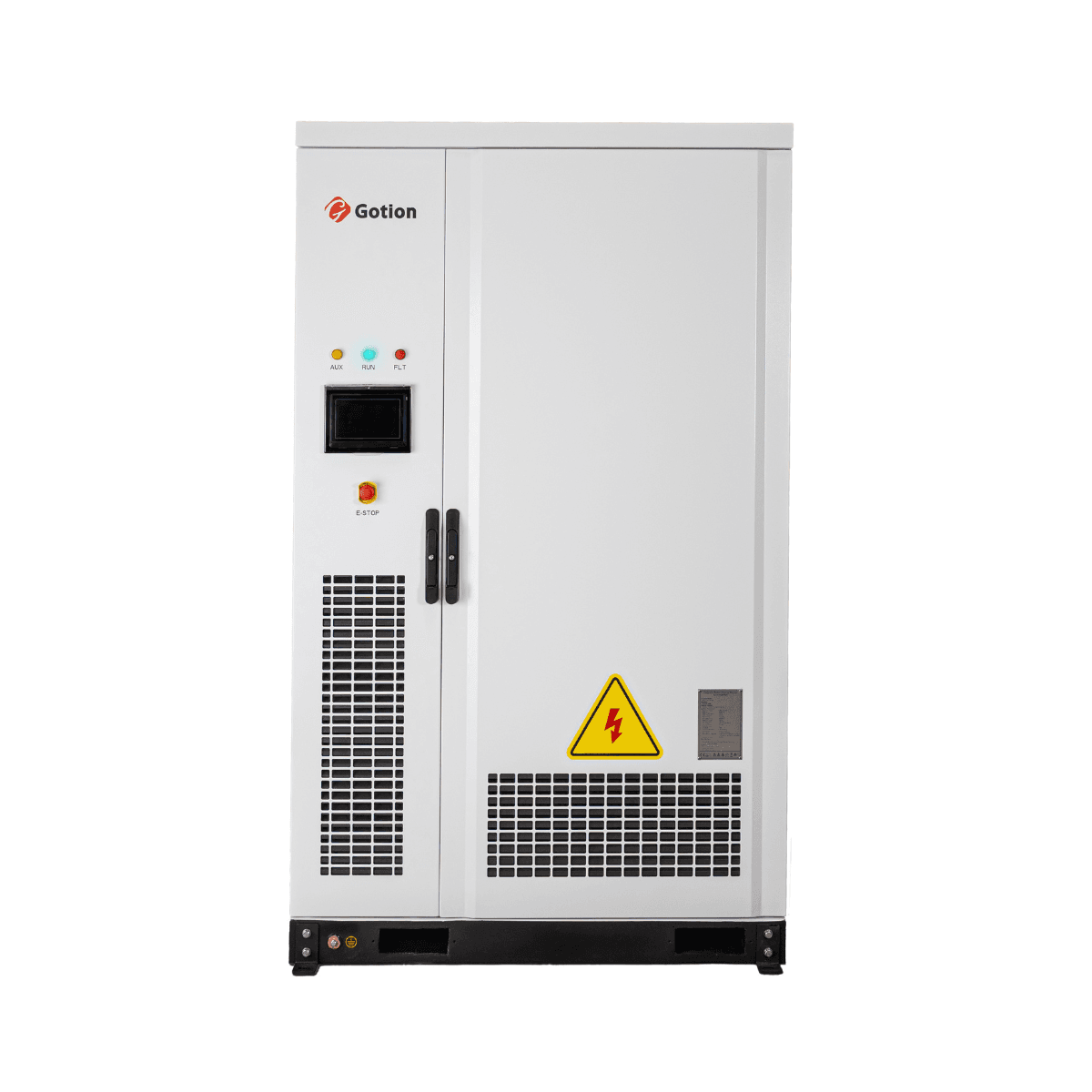

Gotion EDGE 211 kWh Commercial Energy Storage System

The Gotion EDGE 211 kWh Commercial Energy Storage System is an integrated energy storage solution, designed for commercial and industrial applications. This all-in-one system combines a battery system, Battery Management System (BMS), and Power Conversion System (PCS) in a single compact enclosure. The system has been developed for applications such as:

• Peak shaving
• Load shifting
• Grid relief (Power grid discharge)
• Backup power
• Energy trading via EPEX, FCR, or aFRR

The Gotion Edge 211 kW Energy Storage System and the required software are assembled in Gemmerich (Germany). This 'EU made' principle guarantees high quality, safety, and short delivery times.

Key Features

• Battery Type: Lithium Iron Phosphate (LFP)
• Nominal Energy: 211 kWh
• Nominal Power: 100 kW
• System Voltage: 600 - 803 Vdc
• AC Output Voltage: 400 V @ 50/60Hz
• Protection Rating: IP55
• Cooling: Liquid cooling for the battery, air cooling for the PCS
• Weight: approx. 2.6 tonnes
• Dimensions (L x W x H): 1340 x 1300 x 2260 mm

Main Advantages

• High Energy Integration: The all-in-one design combines all components in a single compact cabinet, which maximises ease of installation and space efficiency.
• Scalability: Supports parallel connection of up to 20 sets (on-grid) and 4 sets (off-grid), enabling flexible system expansion.
• Intelligent Monitoring: The integrated EMS (Energy Management System) provides real-time monitoring, fault recording, and intelligent statistical analysis for efficient operation.
• Seamless Transition: Supports automatic and seamless switching between on-grid and off-grid, ensuring a reliable power supply.
• Advanced Safety: Equipped with a multi-layer protection system, including BMS for real-time battery monitoring and an aerosol fire suppression system for maximum safety.
• Long Service Life: The LFP battery cells have a long service life with a cycle life of over 8,000 cycles, which reduces the Total Cost of Ownership (TCO).

Benefits for Installers

• Faster Deployment: The units are pre-assembled, factory-tested, and delivered ready for use. All that is required is positioning, connecting, and commissioning.
• Reduced Labour and On-Site Risk: One unit, one footprint, and no loose wiring or external PCS.
• Repeatable Project Model: Deploy the same plug-and-play unit across multiple clients or locations, with minimal differences in design and configuration.
• Parallel Operation: Easily expand capacity by adding more units, without the need to modify the design.
• Local Support: Gotion provides training, technical assistance, and technical support from its European service team.

Applications

This commercial energy system is ideally suited for a wide range of applications in the B2B market. It is perfect for reducing energy costs through peak shaving in industrial and commercial environments, such as factories, data centres, and large commercial buildings. The system can also serve as a reliable backup power supply or be deployed in PV microgrids, where it helps stabilise the grid and optimise energy consumption.

Warranty and Durability

Gotion offers a standard 5-year warranty on the All-in-One storage system. The system has a long service life and is designed for over 8,000 cycles. The robust construction with an IP55 rating guarantees reliable performance under various conditions, with an operating temperature range of -20°C to 45°C.
