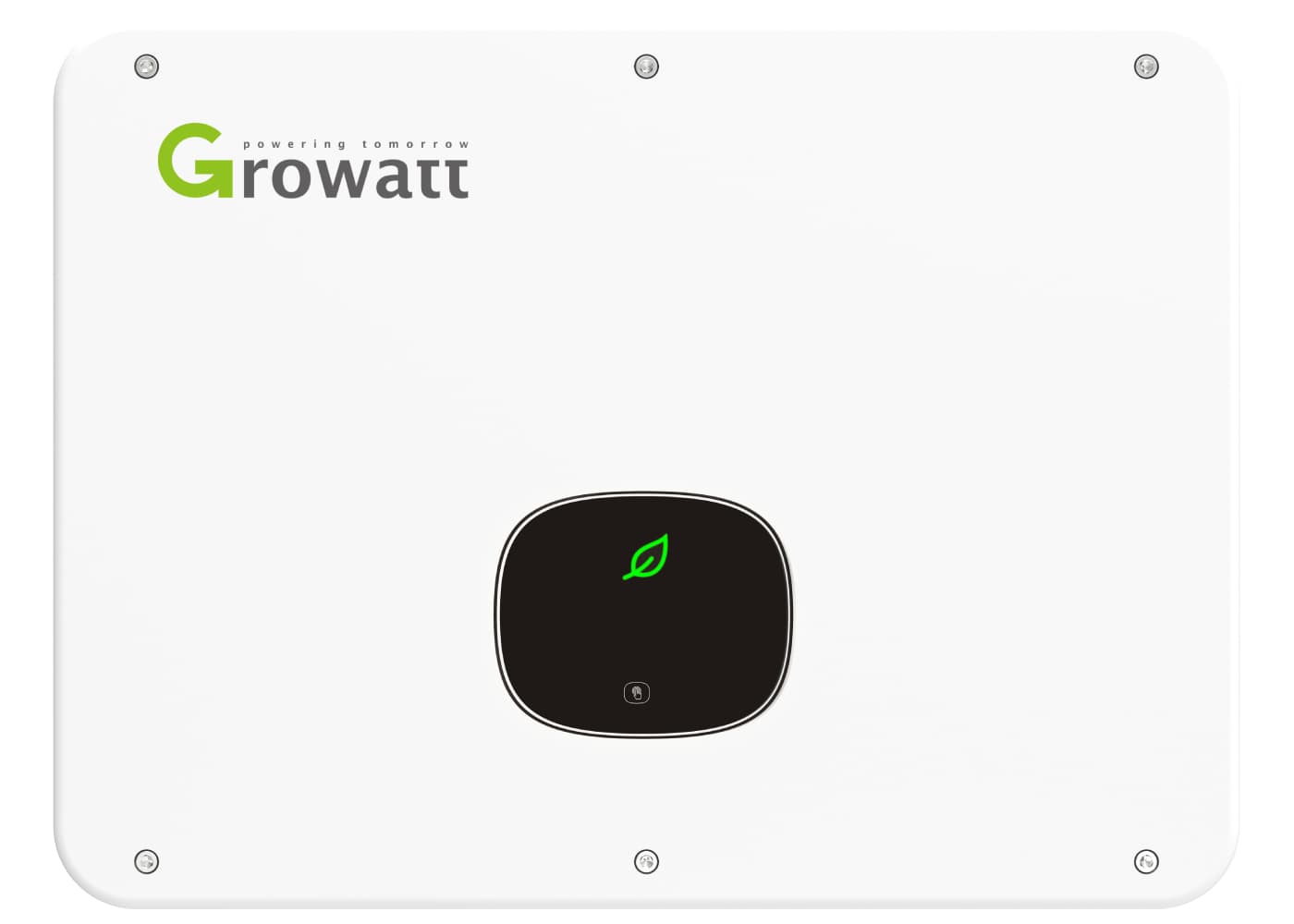

# Growatt Inverter 3PH MID 33KTL3-X  - Art.No.: GROWATT-MID-33KTL3-X

## Specifications

- **Brand**: Growatt
- **HS code**: 85044084
- **Manufactor**: Growatt
- **Net Height**: 435 MILLIMETER
- **Net Length**: 230 MILLIMETER
- **Net Weight**: 30 KILOGRAM
- **Net Width**: 580 MILLIMETER
- **Origin**: China
- **Arc-fault circuit interrupter**: Yes
- **Communication**: RS485
- **Display**: Yes
- **Ingress Protection**: IP66
- **Max. input power**: 49500 WATT
- **Max. output apparent power**: 36600 VOLTAMPERE
- **Max. output current**: 55.5 AMPERE
- **Max. output power**: 33000 WATT
- **Number of MPPT**: 3
- **Number of phases**: 3 phase
- **Type**: String
- **Warranty in Years**: 5

The Growatt MID 33KTL3-X inverter is part of the MID series, a range of three-phase Growatt inverters with a lighter and more compact design than their predecessors.



## Growatt MID 33KTL3-X 33 kW



The Growatt MID 33KTL3-X 33 kW inverter has a maximum output power of 33,000W. This device is compatible with installations of up to a maximum size of 49.5 kWp. The maximum efficiency of the inverter is measured at the maximum yield and is 98.5%. This efficiency applies to average weather conditions in Europe.



## Features of the MID 33KTL3-X



The maximum performance of the MID 33KTL3-X is supported by 3 MPP trackers. The inverter is supplied without a smart meter and can be used for self-consumption or as a grid feeder.



## Safety



To ensure the safety of the installation, the Growatt MID 33KTL3-X is equipped with the following built-in protective measures:



- DC switch
- DC and AC surge protection, type 2
- AFCI protection
- Protection class 66



This inverter communicates with other devices in the network through the following interfaces:



- RS485
- USB
- WiFi (optional)
- GPRS (optional)
- LAN (optional)

## Downloads

- [Verification of Conformity Growatt MID 17 KTL3 X MID40KTL3 X9 2020 ENG](https://cdn.estg.eu/p/5/d/5/6/5d56acd72653a6574bf35bf93b4d6d66fe0bc280_Verification_of_Conformity_Growatt_MID_17_KTL3_X_MID40KTL3_X9_2020_ENG.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [Installation Operation manual Growatt MID 17 40KTL3 X 3PH solar inverters 2021 ENG](https://cdn.estg.eu/p/f/a/1/2/fa126b76adc85823865b3cd1e1ba79008acdbb77_Installation_Operation_manual_Growatt_MID_17_40KTL3_X_3PH_solar_inverters_2021_ENG.pdf)
- [Quick guide Growatt MID 17 40KTL3 X 3PH solar inverters 2021 ENG](https://cdn.estg.eu/p/b/d/0/0/bd00055e6f8306201f877b6cfe4351c50b8a8e7d_Quick_guide_Growatt_MID_17_40KTL3_X_3PH_solar_inverters_2021_ENG.pdf)
- [CE Declaration of Conformity Growatt MIC MIN MOD MID MAX inverters 2021 ENG](https://cdn.estg.eu/p/4/e/2/d/4e2d91dbc7a41d5d2792765da2dda3911aa9dd38_CE_Declaration_of_Conformity_Growatt_MIC_MIN_MOD_MID_MAX_inverters_2021_ENG.pdf)
