title: "Growatt 3PH Hybrid Inverter SPH10000TL3 BH-UP"
description: "Growatt 3PH Hybrid Inverter SPH10000TL3 BH-UP  | One-Stop-Shop | +50 A-brands | Exclusively for Professionals"

type: product_page

---

# Growatt 3PH Hybrid Inverter SPH10000TL3 BH-UP - Art.No.: GROWATT-SPH-10KTL3-BH-UP

## Specifications

- **Brand**: Growatt
- **HS code**: 85044084
- **Manufactor**: Growatt
- **Net Height**: 453 MILLIMETER
- **Net Length**: 198 MILLIMETER
- **Net Weight**: 30 KILOGRAM
- **Net Width**: 505 MILLIMETER
- **Origin**: China
- **Display**: Yes
- **Ingress Protection**: IP65
- **Max. input power**: 15000 WATT
- **Max. output apparent power**: 10000 VOLTAMPERE
- **Max. output current**: 15.2 AMPERE
- **Max. output power**: 10000 WATT
- **Number of MPPT**: 2
- **Number of phases**: 3 phase
- **System**: Growatt SPH series
- **Warranty in Years**: 10

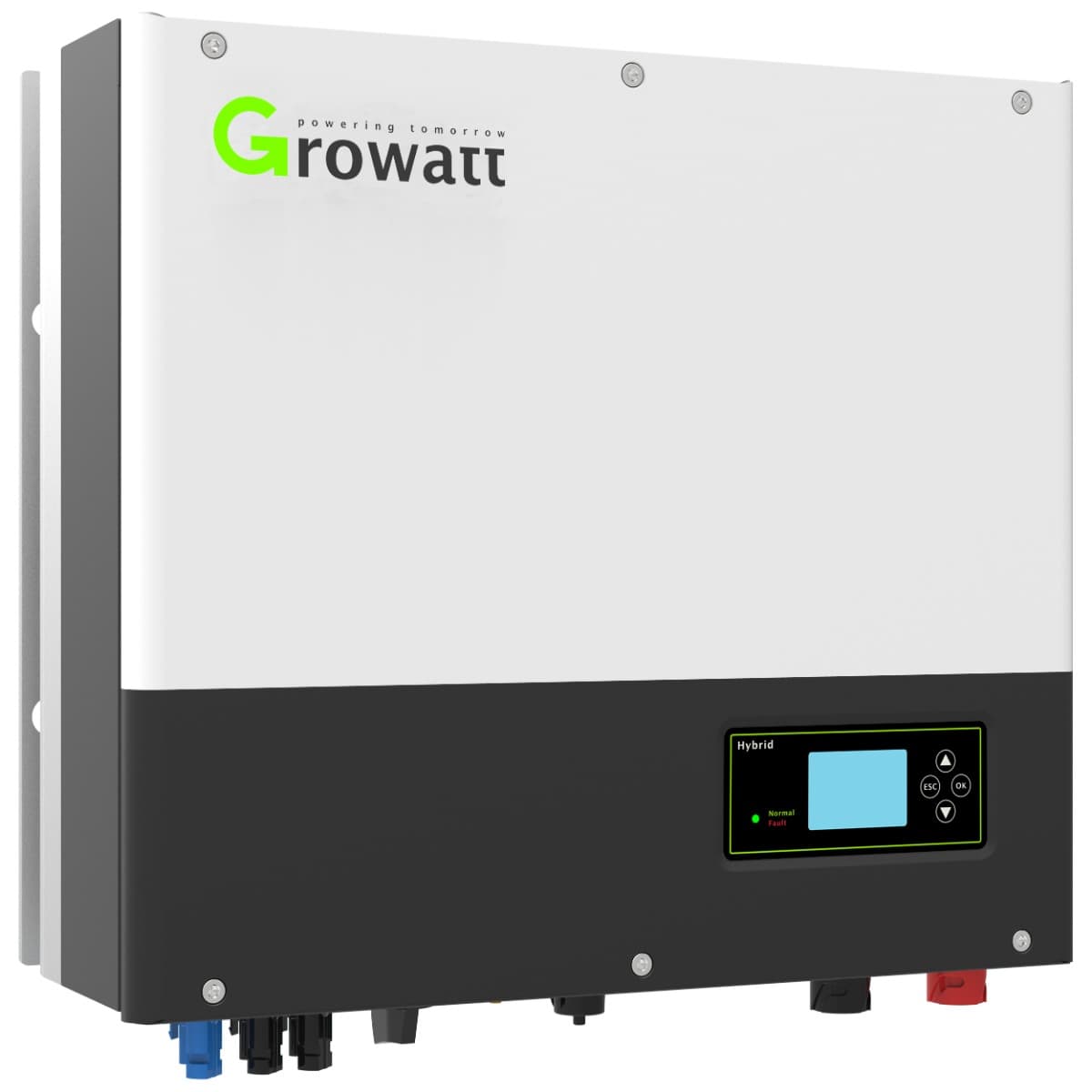

# **Growatt SPH10000TL3 BH-UP 3PH Hybrid Inverter**


The Growatt SPH10000TL3 BH-UP 3PH Hybrid Inverter is part of the SPH series BH-UP, a series of inverters that succeeds the older series, the SPH series. This new series consists of six models, namely:


- SPH4000TL3BH-UP
- SPH4600TL3BH-UP
- SPH5000TL3BH-UP
- SPH6000TL3BH-UP
- SPH7000TL3BH-UP
- SPH8000TL3BH-UP
- SPH10000TL3BH-UP


The Growatt SPH BH series are ideal 3-phase hybrid inverters suitable for large residential and small commercial PV installations. The technology equipped in these inverters ensures excellent interaction between solar panels, storage systems, and the power grid, making them a preferred choice for many installers.


The Growatt SPH inverters are compatible with the myPV **[ELWA 2](https://www.estg.eu/en-gb/p/16-0150)** and the myPV [**AC•THOR**.](https://www.estg.eu/en-gb/p/20-0300) Consult the technical specifications and manuals for the correct Smart Meter (required for Modbus communication) and the precise installation and communication settings.


## **Advantages of the Growatt SPH-BH-UP series**


- 2 MPPTs allowing connection of two panel strings to the inverter.
- Natural cooling resulting in reduced noise.
- User-friendly with a built-in LCD screen.
- Capability to adjust charging and discharging capacities and times.
- Access to the Online Smart Service with an app, OSS system, and a web server.
- Compatible with the ShineLink-X series for monitoring.


These features make the Growatt SPH-BH-UP series a smart and efficient choice for anyone seeking seamless integration of renewable energy technologies.


## **Growatt SPH10000TL3 BH-UP features**


The Growatt SPH10000TL3 BH-UP 3PH Hybrid Inverter is the heaviest-duty inverter in the BH-UP series. This inverter is suitable for solar panel installations with a maximum power of 15,000 W. The maximum output of this hybrid inverter is 10 kW. The battery voltage range for a home battery ranges from 100 to 500 V, making it compatible with all Growatt HV Lithium home batteries.

## Downloads

- [Datasheet Growatt SPH 4000 10000tl3 BH UP 3ph hybrid inverter 2 mppt 2021 ENG](https://cdn.estg.eu/p/1/4/d/b/14dbbd01aa4689d33c58fdeec3d503a3f530ca1f_Datasheet_Growatt_SPH_4000_10000tl3_BH_UP_3ph_hybrid_inverter_2_mppt_2021_ENG.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [User manual Growatt SPH 4000 10000tl3 BH UP 3ph hybrid inverter 2 mppt 2021 ENG](https://cdn.estg.eu/p/b/6/6/a/b66ae924ea8e87e0575ca88ae1f4efba44bf010f_User_manual_Growatt_SPH_4000_10000tl3_BH_UP_3ph_hybrid_inverter_2_mppt_2021_ENG.pdf)
- [Quick guide Growatt SPH 4000 10000tl3 BH UP 3ph hybrid inverter 2 mppt 2021 ENG](https://cdn.estg.eu/p/b/7/d/9/b7d93cc11731cce8f618f3a19c1f80bebaf8a0a9_Quick_guide_Growatt_SPH_4000_10000tl3_BH_UP_3ph_hybrid_inverter_2_mppt_2021_ENG.pdf)
