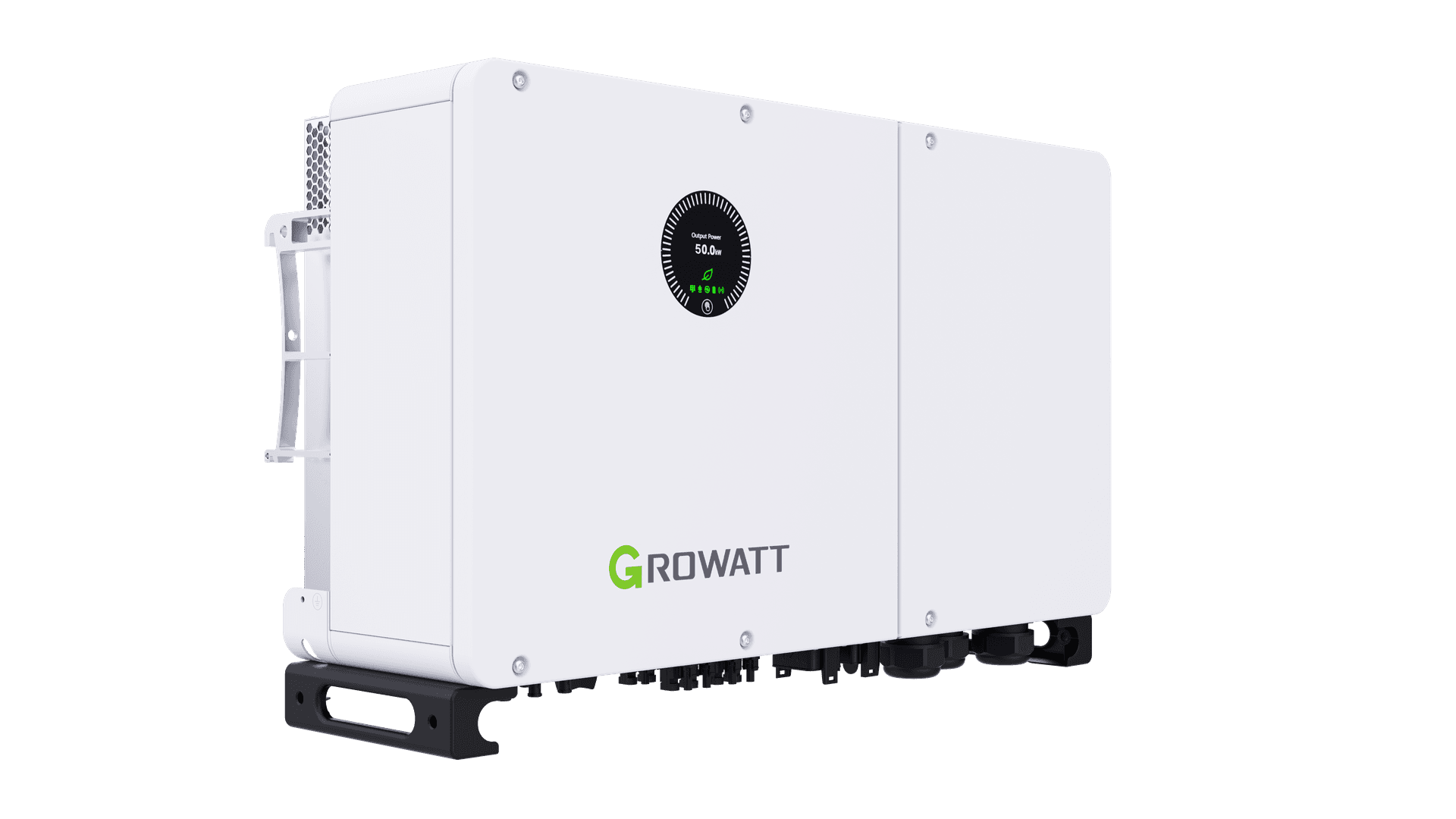

# Growatt WIT 30K-XHU (AF,PID) Battery inverter - Art.No.: HY00.0028000

## Specifications

- **Brand**: Growatt
- **Manufactor**: Growatt
- **Net Height**: 585 MILLIMETER
- **Net Length**: 320 MILLIMETER
- **Net Weight**: 90 KILOGRAM
- **Net Width**: 920 MILLIMETER
- **Origin**: China
- **Max. output power**: 30000 WATT
- **Number of phases**: 3 phase
- **System**: Growatt WIT-XHU series
- **Warranty in Years**: 5

## Growatt WIT 30K-XHU (AF, PID) Battery Inverter


The Growatt WIT 30K-XHU is a robust three-phase hybrid inverter, specifically designed for commercial and industrial applications requiring both solar power generation and advanced energy storage. This model combines the functionalities of a PV inverter with those of a battery inverter, resulting in an integrated and powerful energy system.


### Compatible Batteries


The Growatt WIT 29.9K-XHU inverter is compatible with the Growatt AXE HV battery series, such as the[ **AXE 5.0H-E1 EU module**](https://www.estg.eu/en-gb/p/ST06.0037200) in combination with the **[Growatt AXE 1000100-C1 BMS](https://www.estg.eu/en-gb/p/ST06.0037100)**. These modular battery systems can be configured in various arrangements to achieve the desired storage capacity, ranging from 30 kWh to 180 kWh.


### Key Features


- Multiple MPPTs and battery inputs for optimal energy utilisation
- Supports parallel operation in off-grid mode for scalability
- Integrated UPS function and black start capability
- Intelligent air cooling system for stable performance up to 50°C ambient temperature
- Supports DG (Diesel Generator) input and smart load functions
- Active Arc Fault Circuit Interrupter (AFCI) for enhanced safety
- PID (Potential Induced Degradation) recovery for maintaining module performance
- Communication via RS485/USB/CAN, with optional WiFi/LAN for monitoring
- Compatible with high-voltage batteries


### Key Benefits


- **High Energy Yields:** Optimises the output of PV installations through multiple MPPTs and a wide DC/AC ratio range up to 2.0.
- **Scalable Solution:** Enables parallel configuration, allowing system capacity to be easily expanded for larger projects.
- **Reliable Power Supply:** Provides a stable and continuous power supply, even during grid outages, thanks to the UPS function and 150% off-grid overload capacity.
- **Enhanced Safety:** Features an IP66 protection rating, Type II SPD on both DC and AC sides, and active ARC protection (AFCI).
- **Grid Adaptability:** Functions effectively in weak grid environments, increasing its applicability.
- **Flexible Installation:** Suitable for various installation environments, including options for outdoor placement with weather protection.


### Applications


The Growatt WIT 30K-XHU is ideally suited for commercial and industrial energy storage projects. This includes applications in SMEs, agricultural sectors, and other large consumers aiming for maximum self-sufficiency, energy cost savings, and ensuring business continuity through energy storage. The system is designed for flexible configuration and can be integrated into both on-grid and off-grid setups.


### Warranty and Durability


This product features a robust construction with an IP66 protection rating, ensuring durability and protection against dust and water. Growatt offers a standard warranty on the inverter, with specific terms outlined in the sales contract or Growatt's general warranty conditions. The inverter is designed for a long lifespan with intelligent air cooling to prevent derating at high temperatures.

## Downloads

- [WIT 29.9 50K XHU Datasheet EN 202410](https://cdn.estg.eu/p/3/8/1/4/3814afacf1fb0316f47ce520db407c84263e8b9b_WIT_29.9_50K_XHU_Datasheet_EN_202410.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [WIT XHU Hybrid Energy Storage System](https://cdn.estg.eu/p/4/2/7/7/427703511b4e9aed5226ee62094163eff61536bb_WIT_XHU_Hybrid_Energy_Storage_System.pdf)
- [WIT 29.9 50K XHU Quick Guide EN](https://cdn.estg.eu/p/b/8/8/e/b88e31b8dbad9c97d838d51901ad64c82320f430_WIT_29.9_50K_XHU_Quick_Guide_EN.pdf)
- [WIT 29.9 50K XHU User Manual EN 202504](https://cdn.estg.eu/p/e/4/c/f/e4cf6caee7cff731c13b9508b42457c2cf100259_WIT_29.9_50K_XHU_User_Manual_EN_202504.pdf)
