title: "Growatt WIT 5K-HU | Hybrid Battery Inverter 5 kW"
description: "Growatt WIT 5K-HU hybrid battery inverter for efficient energy management. An ideal solution for installers integrating PV and battery systems."

type: product_page

---

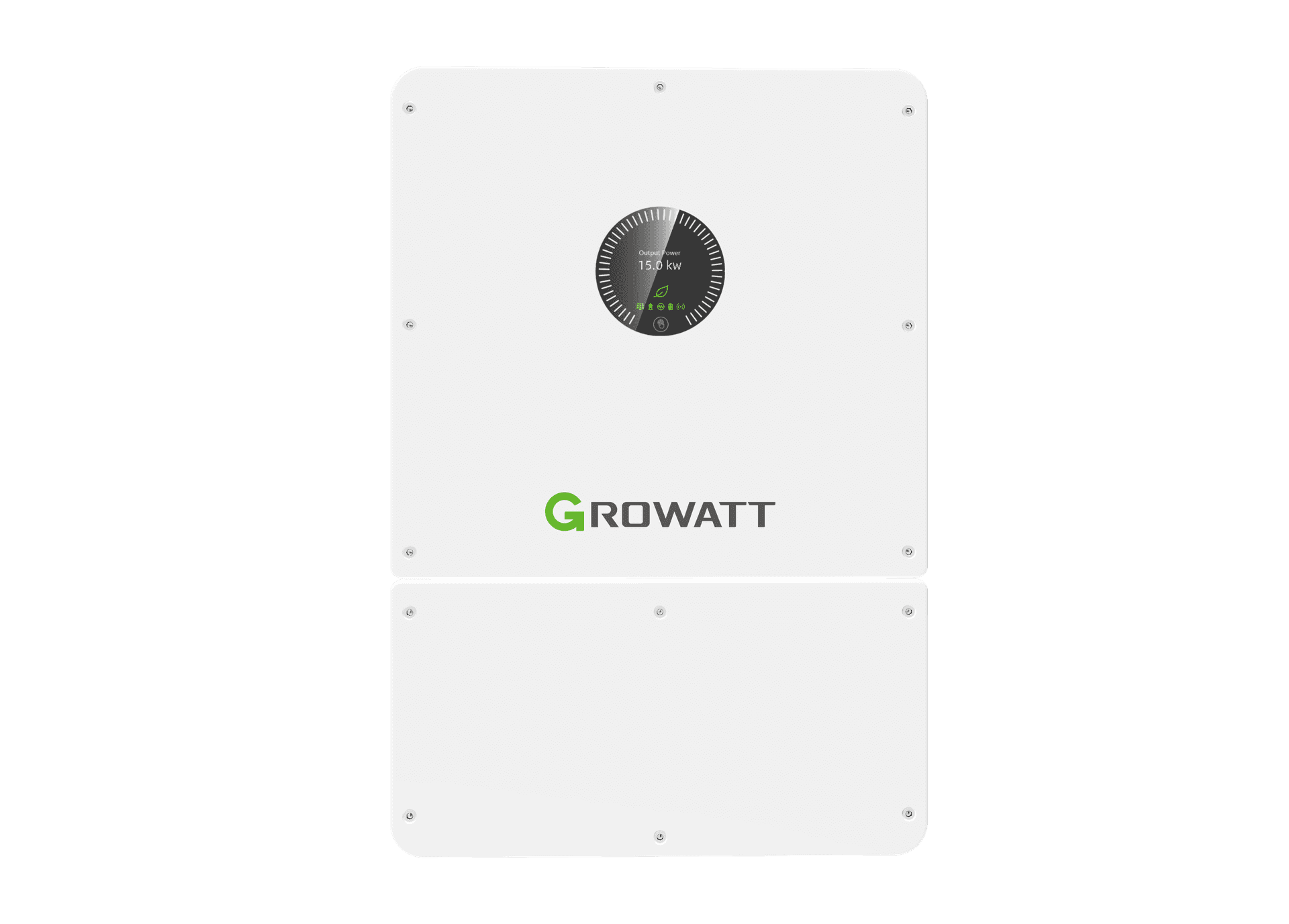

# Growatt WIT 5K-HU Battery inverter - Art.No.: HY00.0037400

## Specifications

- **Brand**: Growatt
- **HS code**: 85044084
- **Manufactor**: Growatt
- **Net Height**: 698 MILLIMETER
- **Net Length**: 240 MILLIMETER
- **Net Weight**: 38 KILOGRAM
- **Net Width**: 475 MILLIMETER
- **Origin**: China
- **Communication**: Wi-Fi
- **Display**: Yes
- **Ingress Protection**: IP66
- **Max. input power**: 10000 WATT
- **Max. output apparent power**: 5500 VOLTAMPERE
- **Max. output current**: 7.9 AMPERE
- **Max. output power**: 5000 WATT
- **Number of MPPT**: 1
- **Number of phases**: 3 phase
- **System**: Growatt WIT-HU series
- **Warranty in Years**: 10

## Growatt WIT 5K-HU Battery Inverter


The Growatt WIT 5K-HU is an advanced hybrid inverter, designed for seamless integration of solar energy and battery storage. This versatile inverter is ideal for residential and commercial applications, optimising energy management through efficient conversion and smart energy control.


The Growatt WIT 4-15K HU inverter series is compatible with the **[Axe low-voltage battery](https://www.estg.eu/en-gb/p/200.0147000)** in combination with the [**Growatt AXE 5.0L accessory pack (base and cable)**.](https://www.estg.eu/en-gb/p/TV03.0006800)


### Key Features


- **Inverter Type:** Hybrid inverter (string and battery)
- **Maximum AC Power:** 5 kW
- **Number of MPPTs:** 1
- **Communication:** RS485, CAN, Wi-Fi/LAN
- **Cooling:** Convection cooling


### Main Advantages


- **Optimal Energy Efficiency:** High conversion efficiency for maximum energy yield from solar panels and batteries.
- **Flexible Scalability:** Easily expandable with additional battery modules to meet growing energy demands.
- **Integrated Monitoring:** Real-time monitoring of energy production and consumption via a user-friendly platform.
- **Broad Compatibility:** Suitable for various battery types and seamless integration with existing PV systems.
- **Reliable Operation:** Stable and secure power supply, even during grid fluctuations.
- **Compact Design:** Space-saving design for flexible installation.


### Applications


The Growatt WIT 5K-HU battery inverter is highly suitable for projects where optimal utilisation of solar energy and energy storage is essential. This includes:


- Residential properties aiming for self-sufficiency.
- Small to medium-sized commercial buildings looking to reduce their energy costs and increase their grid independence.
- Retrofit projects where existing PV installations are expanded with battery storage.


### Warranty and Durability


Growatt offers a standard warranty on the WIT 5K-HU inverter, in accordance with applicable industry standards. The robust design and high-quality components guarantee a long lifespan and reliable performance under various environmental conditions, with an IP65 rating for outdoor installation.

## Downloads

- [WIT 4 15K HU Datasheet EN 202410](https://cdn.estg.eu/p/7/d/3/4/7d34b60120f1e711d335fbf7556bd7e073b444cc_WIT_4_15K_HU_Datasheet_EN_202410.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [WIT 4 15K HU Quick Guide](https://cdn.estg.eu/p/c/d/5/9/cd590441099b4ce8de84b5964d977fbb0811ee84_WIT_4_15K_HU_Quick_Guide.pdf)
