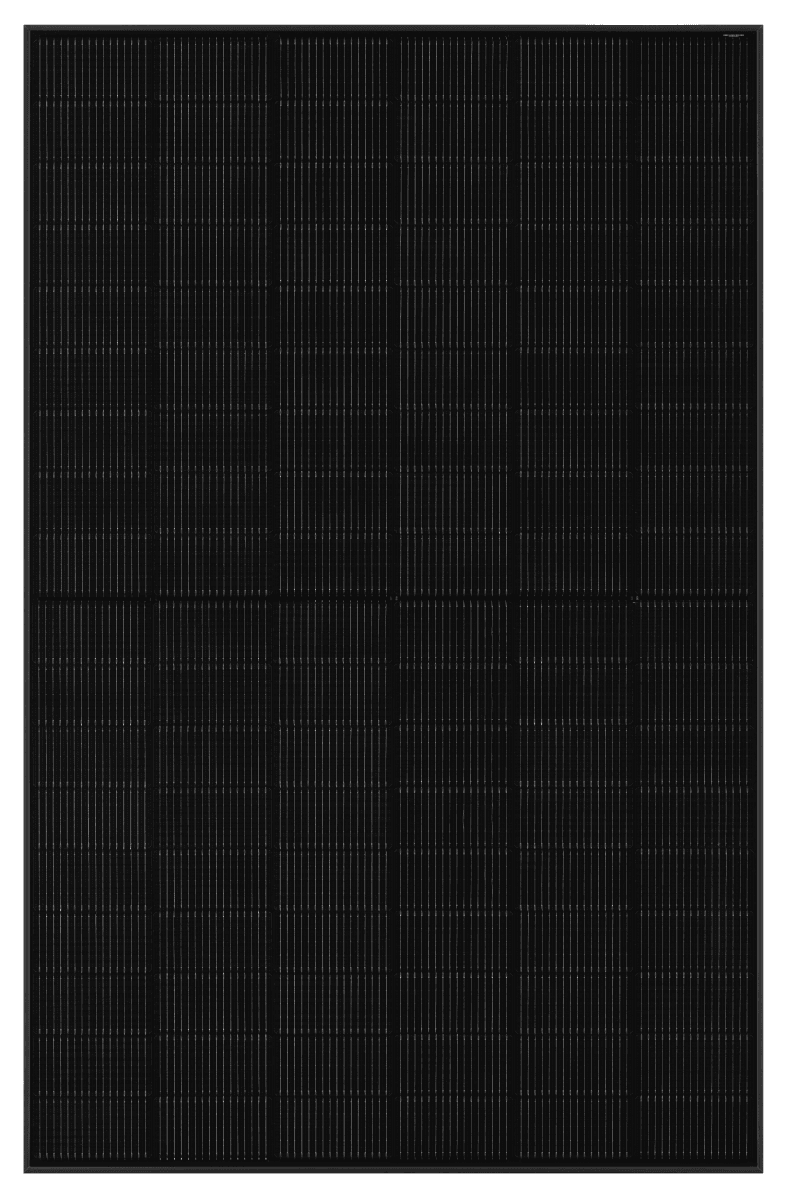

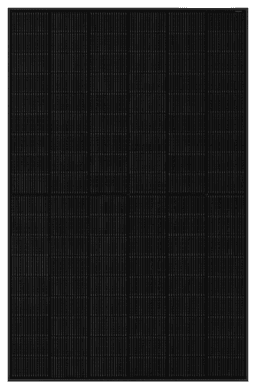

JA Solar N-Type 460 W - Monofacial Double Glass All Black

The JA Solar N-Type 460 W solar panel from the JAM54D41 series combines superior performance with a sophisticated All Black design. Utilizing advanced N-type cell technology, this panel offers higher efficiency and an improved temperature coefficient, resulting in maximum energy yield even on hot days. The double glass construction ensures exceptional mechanical durability and long-term protection against environmental factors.

Key Features

• Power Output: 460 Wp with a module efficiency of 23.0%.
• N-Type Technology: Minimal degradation (LID/LeTID) and excellent performance in low-light conditions.
• Double Glass: Enhanced fire safety and superior resistance to salt, ammonia, and sand.
• Aesthetics: Full black frame and cells for an elegant, seamless integration on any rooftop.
• Dimensions & Weight: 1762 x 1134 x 30 mm | 22.0 kg.

Main Benefits

• Higher Energy Yield: N-type cells feature lower annual degradation, generating significantly more energy over 30 years compared to P-type modules.
• Exceptional Warranty: Backed by a 25-year product warranty and a 30-year linear power warranty.
• Improved Reliability: The dual-glass structure reduces the risk of micro-cracks and significantly enhances module stability.
• Weather Resistance: Certified to withstand heavy snow loads (5400 Pa) and wind loads (2400 Pa).

Applications

This All Black panel is the perfect choice for residential projects where aesthetics and power are equally prioritized. Its double glass technology also makes it highly suitable for locations with harsh weather conditions or coastal environments.

Warranty and Durability

Designed for a lifespan exceeding 30 years, this panel features a 25-year product warranty and a 30-year power warranty, with only 0.4% annual degradation after the first year.
