# Growatt Inverter 3PH MAX 70KTL3 LV with afci - Art.No.: MAX 70KTL3 LV AFCI

## Specifications

- **Brand**: Growatt
- **HS code**: 85044084
- **Manufactor**: Growatt
- **Net Height**: 600 MILLIMETER
- **Net Length**: 300 MILLIMETER
- **Net Weight**: 86 KILOGRAM
- **Net Width**: 860 MILLIMETER
- **Origin**: China
- **Arc-fault circuit interrupter**: Optional
- **Communication**: RS485
- **Display**: Yes
- **Ingress Protection**: IP65
- **Max. input power**: 105000 WATT
- **Max. output apparent power**: 77700 VOLTAMPERE
- **Max. output current**: 112.7 AMPERE
- **Max. output power**: 70000 WATT
- **Number of MPPT**: 7
- **Number of phases**: 3 phase
- **System**: Growatt MAX series
- **Type**: String
- **Warranty in Years**: 5

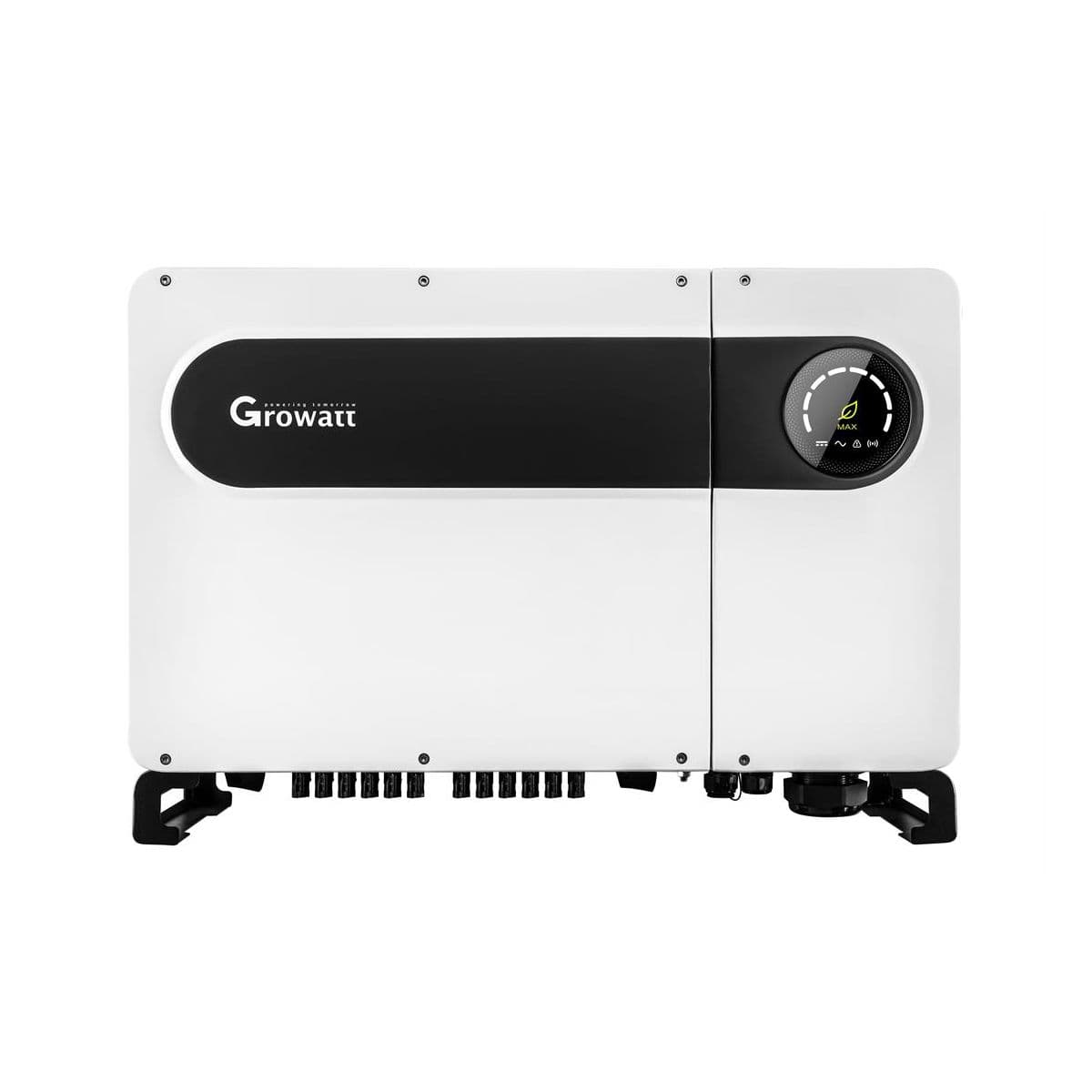

# **Growatt Inverter 3PH MAX 70KTL3 LV with afci**


The Growatt MAX 70KTL3 inverter is part of the Growatt MAX series, a range of three-phase commercial inverters with capacities ranging from 50kW to 125kW.


The MAX version of Growatt boasts a maximum efficiency of 99% for optimal energy yield in every commercial PV system.


## **Growatt MAX Inverters**


All models come equipped with AFCI. This Arc-Fault Circuit Interrupter is a special fuse designed as arc-fault protection. When a dangerous arc fault is detected, the AFCI automatically cuts off the electricity supply, significantly reducing the risk of electrical fires.


## **Features of the Growatt MAX 70KTL3 Inverter**


The Growatt MAX 70KTL3 inverter is one of the lighter models in the Growatt MAX inverter series. The maximum output power of the Growatt MAX 70KTL3 inverter is 77,000VA. The maximum efficiency of the inverter is 98.8%. Under Western European weather conditions, the inverter achieves an efficiency of 98.5%.


## **Optimal Performance**


With the help of 7 MPP trackers (MPPT), each handling two strings, the installation's user is ensured optimal energy yield, even in cases of shading.


## **Communication options of the Growatt MAX 70KTL3 LV**


- GPRS (optional)
- 4G (optional)
- WiFi (optional)
- RF (optional)

## Downloads

- [Installation manual Growatt max](https://cdn.estg.eu/p/6/7/1/a/671a7f5865e18c746c885b9b08a1ad17c5c88dd1_Installation_manual_Growatt_max.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [CE Declaration of Conformity Growatt MIC MIN MOD MID MAX inverters 2021 ENG](https://cdn.estg.eu/p/2/9/c/b/29cbef2a01a81fdef3b16027d55072f1fff07add_CE_Declaration_of_Conformity_Growatt_MIC_MIN_MOD_MID_MAX_inverters_2021_ENG.pdf)
- [MAX 50 80KTL3 LV Datasheet](https://cdn.estg.eu/p/c/5/0/e/c50e93048c21ed34bc52f4f224d2dbe80ad203d2_MAX_50_80KTL3_LV_Datasheet.pdf)
