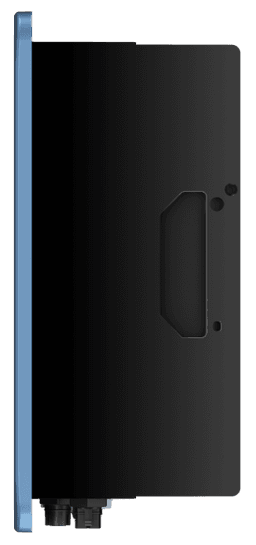

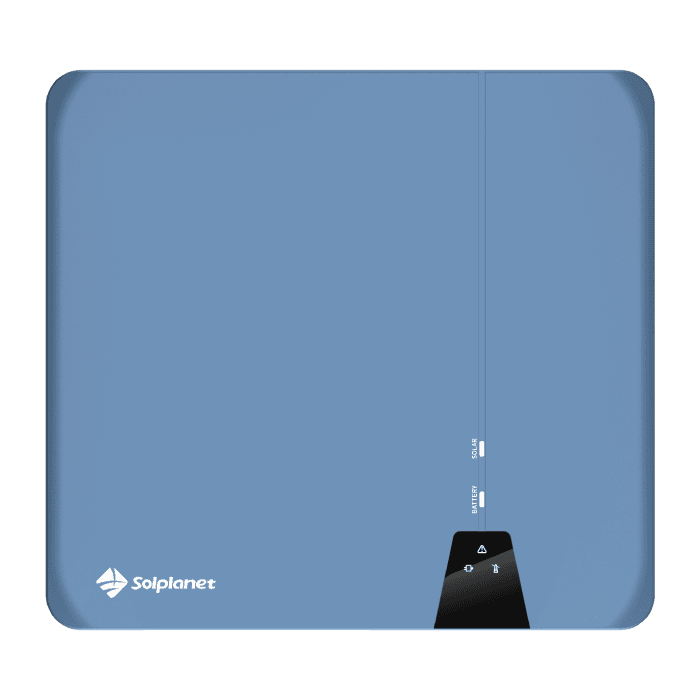

# Solplanet ASW3000H-S2 - Art.No.: PB3000-60-03-31P

## Specifications

- **Brand**: Solplanet
- **Manufactor**: Solplanet
- **Net Height**: 455 MILLIMETER
- **Net Length**: 193.5 MILLIMETER
- **Net Weight**: 25 KILOGRAM
- **Net Width**: 483 MILLIMETER
- **Origin**: China
- **Ingress Protection**: IP66
- **Max. output power**: 3000 WATT
- **Number of phases**: 1 phase
- **Warranty in Years**: 10

The Solplanet ASW3000H-S2 hybrid inverter is part of the new ASW H-S2 series of inverters. This inverter features an ultra-quiet mode with natural convection heat dissipation, significantly reducing the noise level. The upgrades in this series also bring improvements to the already excellent waterproof design, and with the IP66 certification, the Solplanet ASW3000H-S2 hybrid inverter is suitable for easy installation indoors or outdoors.



## Solplanet ASW3000H-S2 configuration



Solplanet has thoroughly improved the configuration and system algorithm, optimizing the circuit topology technology and dual-phase shift control technology for optimal performance. The units deliver breakthrough efficiency with an input power of up to 9 kW and 5 kW charging and discharging. The result is optimal energy consumption with a discharge efficiency increased to 94.7%.



## ASW3000H-S2 switching speed



The ASW H-S2 hybrid inverters can switch from parallel to off-grid mode in a matter of milliseconds. Thanks to the system upgrades, the inverter is capable of detecting a grid disconnection in less than 10 ms, enabling faster-than-ever switching from grid-connected to off-grid mode. No more worries about blackouts during power outages.



## Enhanced EMS (Energy Management System)



The entire ASW H-S2 series of hybrid inverters (3-6 kW) is equipped with a completely revamped EMS (Energy Management System). The smart tracking and adjustment capabilities for the solar panels and batteries ensure optimal performance of the PV system.




The ASW H-S2 model has a maximum input of 550V with an initial feed of 50V. This full series comes with an input PV power range from 5500 to 9000 Wp STC and includes 2 independent MPP trackers, each with a maximum input current of 16A.




The rated output power (AC) of the inverters is 3000 / 3680 / 4000 / 5000 W and 6000 W, plus a nominal voltage of 230, making these adaptable inverters highly popular for residential installations as well as small commercial operations.

## Downloads

- [QG0031 Solplanet App EN 0622 3](https://cdn.estg.eu/p/e/7/5/4/e7548e3af39dea744f5348a3b129d22f16f226f1_QG0031_Solplanet_App_EN_0622_3.pdf)
- [Datasheet Hybrid H S2 Series Global EN 0323.web ](https://cdn.estg.eu/p/0/d/7/0/0d703f464c9b6ea791762f489c8c3a441d527031_Datasheet_Hybrid_H_S2_Series_Global_EN_0323.web_.pdf)
- [Hybrid battery compatibility list 1222 web](https://cdn.estg.eu/p/2/a/d/f/2adfd258e123572a1a51271dde1c51e5b2536bec_Hybrid_battery_compatibility_list_1222_web.pdf)
- [QG0043 ASW3000 6000H S2 EN 540 300078 01 1022](https://cdn.estg.eu/p/2/7/b/b/27bba2e6b1948cb09b10e5629d19aaac9e939a43_QG0043_ASW3000_6000H_S2_EN_540_300078_01_1022.pdf)
- [UM0025 ASW3000 6000H S2 EN V03 0423](https://cdn.estg.eu/p/7/f/e/f/7fef1ab36a6b7e74bed581d685ffc13a4ca7964e_UM0025_ASW3000_6000H_S2_EN_V03_0423.pdf)
