# Wallbox Pulsar Max Socket (22kW / Type 2 / Black) - Art.No.: PLP4-W-2-4-9-002

## Specifications

- **Brand**: Wallbox
- **HS code**: 8537109199
- **Manufactor**: Wallbox
- **Net Height**: 142.5 MILLIMETER
- **Net Length**: 313 MILLIMETER
- **Net Weight**: 2.5 KILOGRAM
- **Net Width**: 204.3 MILLIMETER
- **Origin**: Spain
- **Communication**: Bluetooth, Wi-Fi
- **Ingress Protection**: IP55
- **Load balancing**: Optional
- **Max. output current**: 32 AMPERE
- **Max. output power**: 22 KILOWATT
- **Number of phases**: 3 phase
- **Segment**: Residential
- **Socket type**: Socket
- **System**: Wallbox Pulsar Max
- **Warranty in Years**: 2

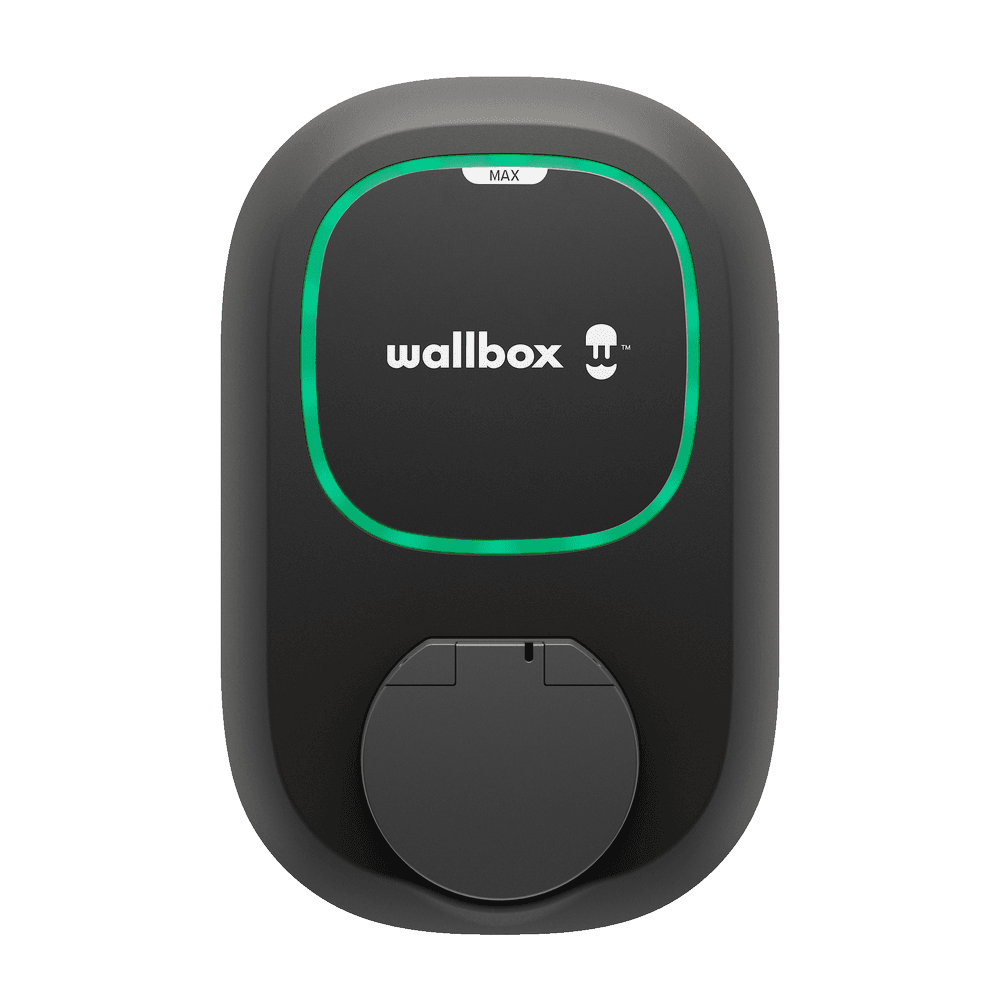

# **Wallbox Pulsar Max Socket 22kW**


**Please note: cable not included**


The Wallbox Pulsar Max Socket is a technologically advanced and robust electric vehicle charger, engineered to provide a versatile and dependable charging solution for a wide range of applications.


## **Adaptable and High-Performance Charging:**


- Capable of delivering up to 22kW of charging power in a three-phase configuration, enabling rapid charging for compatible EVs.
- Optional Load Balancing and ‘Solar Charging’ via external meter


## **Comprehensive Connectivity and User-Friendly Management:**


- Features integrated **Wi-Fi **for reliable network connectivity, enabling seamless communication with the myWallbox platform.
- Includes **Bluetooth **for straightforward initial setup and local control options.
- Facilitates remote monitoring and adjustment of charging sessions through the intuitive Wallbox mobile application, accessible from anywhere with an internet connection.
- Benefits from over-the-air software updates, ensuring the charger remains up-to-date with the latest features and security enhancements.
- **OCPP 1.6 (Open Charge Point Protocol) compliant**, allowing seamless integration with various backend management systems and enabling advanced functionalities such as remote diagnostics, firmware updates, smart charging management, and integration with billing platforms.


## **Secure Authentication Methods for Enhanced User Control:**


- Charging initiation and control are managed securely through the **Wallbox mobile application**, requiring user login for access.


## **Engineered for Durability and Simplified Installation:**


- Features a compact and contemporary design that blends seamlessly with diverse environments.
- Constructed to achieve IP55 and IK10 ratings, offering significant resistance to environmental factors (dust and water ingress) and physical impact, making it suitable for both indoor and protected outdoor installations.
- Designed with a focus on ease of installation.


## **Versatile Solution for Multiple Charging Environments:**


- An excellent choice for residential use, providing a dependable and smart home charging solution with secure access control.

## Downloads

- [PulsarMax Shutter Tethered Datasheet en UK](https://cdn.estg.eu/p/0/3/6/e/036e959e2eb937ca2cbaf1cb44cca8119cb5d88f_PulsarMax_Shutter_Tethered_Datasheet_en_UK.pdf)
