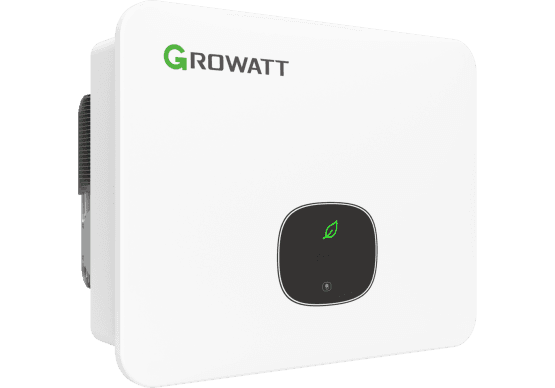

# Growatt MID 8KTL3-XHL Delta Grid inverter - Art.No.: PV02.0196702

## Specifications

- **Brand**: Growatt
- **HS code**: 8504403090
- **Manufactor**: Growatt
- **Net Height**: 217.5 MILLIMETER
- **Net Length**: 579 MILLIMETER
- **Net Weight**: 29.5 KILOGRAM
- **Net Width**: 433 MILLIMETER
- **Origin**: China
- **Arc-fault circuit interrupter**: Yes
- **Display**: Yes
- **Ingress Protection**: IP66
- **Max. output apparent power**: 8000 VOLTAMPERE
- **Max. output current**: 21 AMPERE
- **Max. output power**: 8000 WATT
- **Number of MPPT**: 3
- **Number of phases**: 3 phase
- **System**: Growatt MID-XHL Series
- **Warranty in Years**: 10

## Growatt MID 8KTL3-XHL: High-Performance Three-Phase Inverter for Delta Grid Networks


**Please note: This inverter is only suitable for countries with a Delta Grid Network.**


The MID 8KTL3-XHL combines high efficiency with a versatile design, making it an ideal choice for diverse roof orientations and shading conditions. Its advanced safety protocols and smart monitoring capabilities provide peace of mind for both installers and end-users, ensuring long-term system stability and maximum ROI.


### Key Technical Specifications:


- **AC Nominal Power:** 8000W
- **Max. AC Apparent Power:** 8000VA
- **Max. Recommended PV Power (STC):** 24000W
- **Number of MPP Trackers:** 3
- **MPPT Voltage Range:** 160V - 850V
- **Max. DC Voltage:** 1100V
- **Max. Input Current per MPPT:** 32A
- **Max. Short-Circuit Current per MPPT:** 40A
- **Nominal AC Voltage (Range):** 127V/220V, 133V/230V (3W+PE connection)
- **Max. Efficiency:** 98.0%
- **European Efficiency:** 97.5%
- **Protection Degree:** IP66 (suitable for outdoor installation)
- **Operating Temperature Range:** -25°C to +60°C (with derating above 45°C)
- **Cooling:** Smart Air Cooling
- **DC Switch:** Integrated
- **AC/DC Surge Protection:** Type II on both AC and DC sides
- **Monitoring Interfaces:** OLED+LED display, WiFi+APP, USB, RS485 (Optional: GPRS, LAN, RF)
- **AFCI Protection:** Yes (Arc Fault Circuit Interrupter)
- **Dimensions (W/H/D):** 579 / 433 / 217.5 mm
- **Weight:** 30 kg
- **Warranty:** 10 years
- **Battery Ready:** Yes (Compatible with APX HV battery systems, 5-30kWh)

#BBD0E0
»

## Downloads

- [MID 8 15KTL3 XH L Datasheet EN 202506](https://cdn.estg.eu/p/3/3/e/f/33ef56e292c4ad24e066facd066d45654cc7aa0e_MID_8_15KTL3_XH_L_Datasheet_EN_202506.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/6/b/e/4/6be4ae876d6f8fe2042e1afa188e1aafc4f54d9d_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
- [MID 8 15KTL3 XHL User Manual EN](https://cdn.estg.eu/p/8/f/d/1/8fd1dd945e82366159e92429f5d521d52da45c5d_MID_8_15KTL3_XHL_User_Manual_EN.pdf)
- [MID 8 15KTL3 XHL Quick Guide EN](https://cdn.estg.eu/p/8/7/f/4/87f4cfa509f8a0e4c875859148dbfde9d05df7d2_MID_8_15KTL3_XHL_Quick_Guide_EN.pdf)
