title: "Complete Sungrow SBR128 HV LFP 12.8kWh Battery"
description: "The Sungrow SBR128 High Voltage LFP battery system is a complete set including BMS, Base, Battery Units and installation material. Capacity 12.8kWh."

type: product_page

---

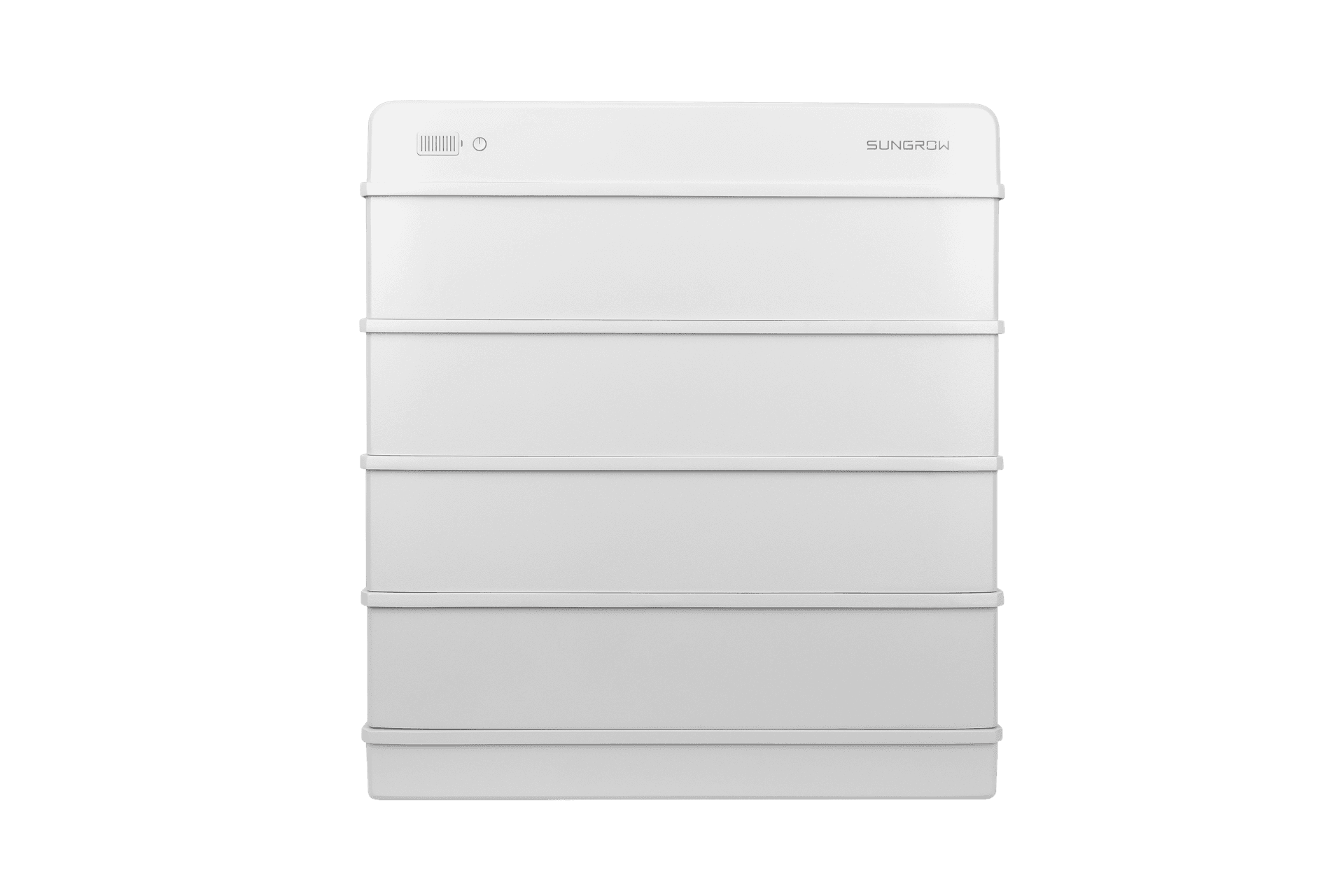

# Sungrow SBR128 High Voltage LFP battery system (12.8kWh battery + BMS) - Art.No.: SBR128

## Specifications

- **Brand**: Sungrow
- **HS code**: 85076000
- **Manufactor**: Sungrow
- **Net Height**: 675 MILLIMETER
- **Net Length**: 330 MILLIMETER
- **Net Weight**: 147 KILOGRAM
- **Net Width**: 625 MILLIMETER
- **Origin**: China
- **Battery capacity**: 12.8 KILOWATT
- **Ingress Protection**: IP55
- **Number of phases**: 3 phase
- **System**: Sungrow SBR
- **Type**: Set
- **Voltage battery**: High

## Sungrow SBR128 High Voltage 12.8kWh LFP battery system


This Sungrow 12.8kWh battery systems consists of


- **1x BMS**
- **4x Sungrow SBR Battery Module 3.2kW **
- **Accessories for complete installation:**
- Base
- Top cover
- Switch gear
- Bracket
- Side covers
- Communication connector
- M5*125 hex socket screw (optional)
- Foot
- M5*14 hex socket screw
- Expansion plug set
- M5 screw sets
- M6 fender washer
- SUNCLIX connector or MC4 Connector
- OT terminal
- Communication cable fastening tool*


* This accessory is intended for circular communication connectors only.

## Downloads

- [Datasheet SBR064 SBR096 SBR128 SBR160 SBR192 SBR224 SBR256 Datasheet V4 20240823](https://cdn.estg.eu/p/b/e/2/8/be280f1cf866eb813a1e6423071952738b49c8f9_Datasheet_SBR064_SBR096_SBR128_SBR160_SBR192_SBR224_SBR256_Datasheet_V4_20240823.pdf)
