title: "Sungrow SBR192 High Voltage LFP Battery 19.2kWh"
description: "The Sungrow SBR192 High Voltage LFP battery system is a complete set including BMS, Base, Battery Units and installation material. Capacity 19.2kWh."

type: product_page

---

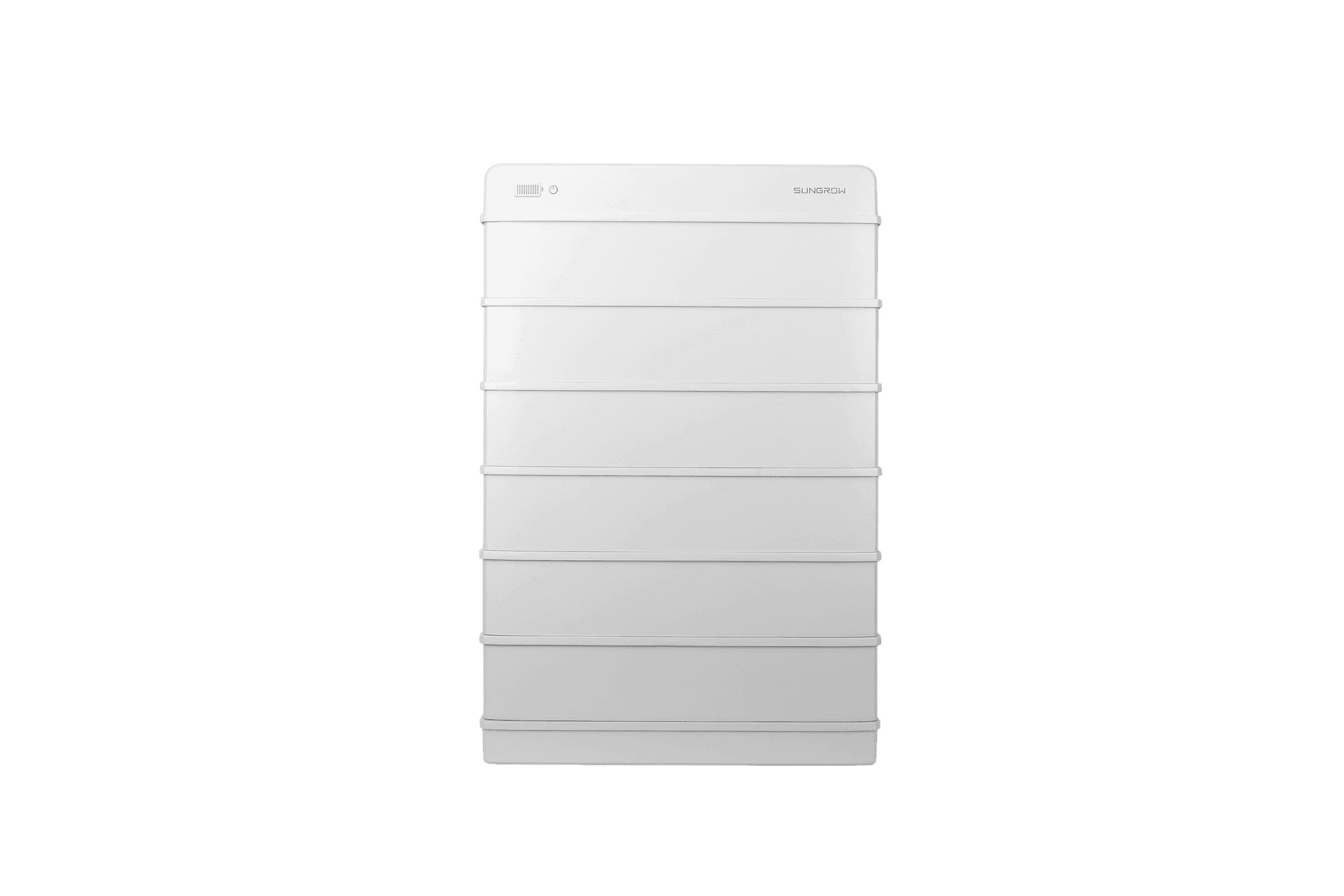

# Sungrow SBR192 High Voltage LFP battery system (19.2kWh battery + BMS) - Art.No.: SBR192

## Specifications

- **Brand**: Sungrow
- **HS code**: 85076000
- **Manufactor**: Sungrow
- **Net Height**: 935 MILLIMETER
- **Net Length**: 330 MILLIMETER
- **Net Weight**: 213 KILOGRAM
- **Net Width**: 625 MILLIMETER
- **Origin**: China
- **Battery capacity**: 19.2 KILOWATT
- **Ingress Protection**: IP55
- **Number of phases**: 3 phase
- **System**: Sungrow SBR
- **Type**: Set
- **Voltage battery**: High

## Sungrow SBR192 High Voltage 19.2kWh LFP battery system


This Sungrow 19.2kWh battery systems consists of


- **1x BMS**
- **6x Sungrow SBR Battery Module 3.2kW **
- **Accessories for complete installation:**
- Base
- Top cover
- Switch gear
- Bracket
- Side covers
- Communication connector
- M5*125 hex socket screw (optional)
- Foot
- M5*14 hex socket screw
- Expansion plug set
- M5 screw sets
- M6 fender washer
- SUNCLIX connector or MC4 Connector
- OT terminal
- Communication cable fastening tool*


* This accessory is intended for circular communication connectors only.

## Downloads

- [Datasheet SBR064 SBR096 SBR128 SBR160 SBR192 SBR224 SBR256 Datasheet V4 20240823](https://cdn.estg.eu/p/c/a/0/d/ca0dd315433216f49a08cc10180d359039eb2d34_Datasheet_SBR064_SBR096_SBR128_SBR160_SBR192_SBR224_SBR256_Datasheet_V4_20240823.pdf)
- [EN UM SBR096 256 User Manual V20 202309](https://cdn.estg.eu/p/8/7/9/f/879fa05074ba99789f536e679e2774998f70f383_EN_UM_SBR096_256_User_Manual_V20_202309.pdf)
- [EN DE IT FR NL PL ES PT SE SBR096 256 Quick Installation Guide V18 202302](https://cdn.estg.eu/p/2/f/6/3/2f6382b231a4a28344092d5d9d8c1526990b8e82_EN_DE_IT_FR_NL_PL_ES_PT_SE_SBR096_256_Quick_Installation_Guide_V18_202302.pdf)
