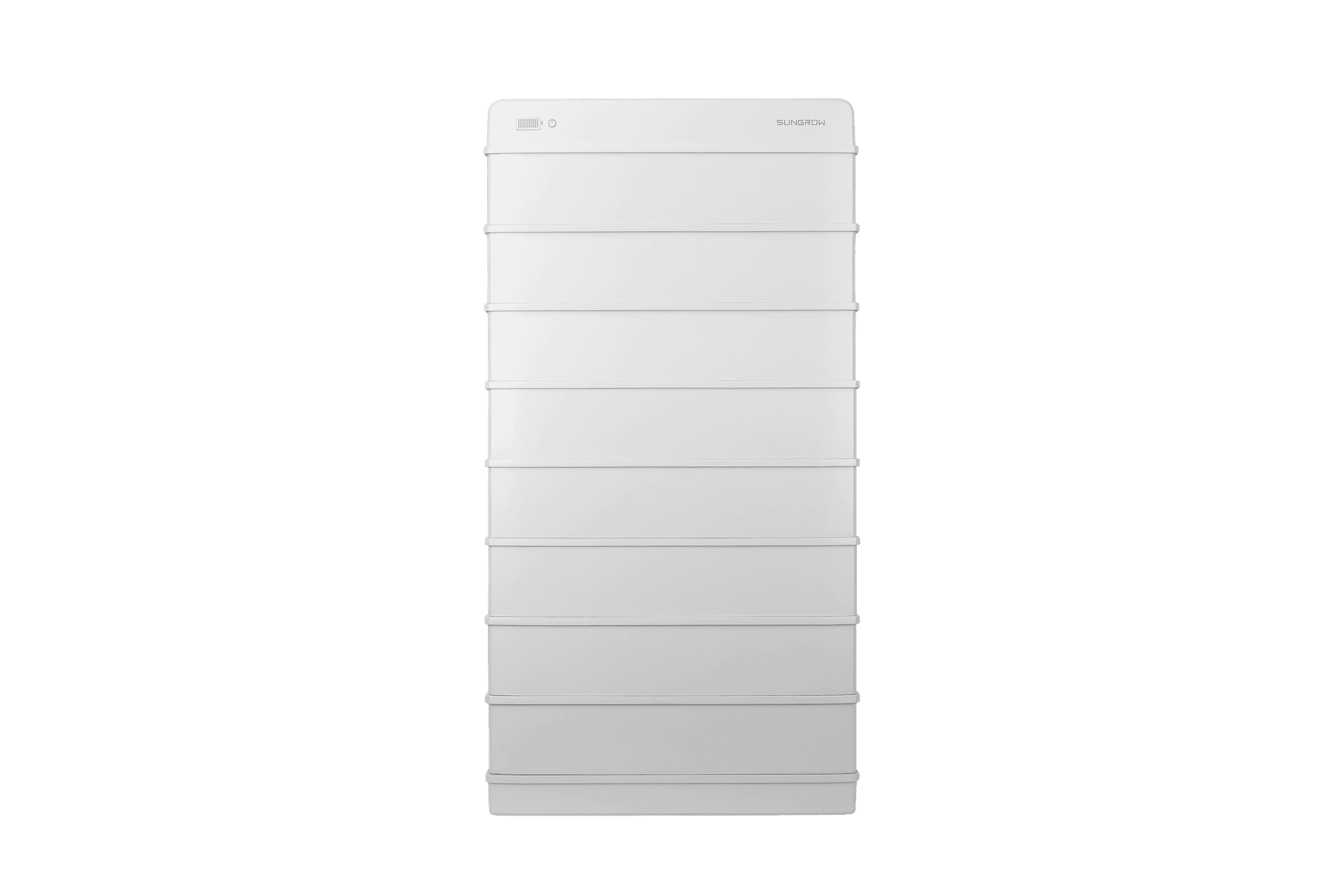

# Sungrow SBR256 High Voltage LFP battery system (25.6kWh battery + BMS) - Art.No.: SBR256

## Specifications

- **Brand**: Sungrow
- **HS code**: 85076000
- **Manufactor**: Sungrow
- **Net Height**: 1195 MILLIMETER
- **Net Length**: 330 MILLIMETER
- **Net Weight**: 279 KILOGRAM
- **Net Width**: 625 MILLIMETER
- **Origin**: China
- **Battery capacity**: 25.6 KILOWATT
- **Ingress Protection**: IP55
- **Number of phases**: 3 phase
- **System**: Sungrow SBR
- **Type**: Set
- **Voltage battery**: High

## Sungrow SBR256 High Voltage 25.6kWh LFP battery system


This Sungrow 25.6kWh battery systems consists of


- **1x BMS**
- **8x Sungrow SBR Battery Module 3.2kW **
- **Accessories for complete installation:**
- Base
- Top cover
- Switch gear
- Bracket
- Side covers
- Communication connector
- M5*125 hex socket screw (optional)
- Foot
- M5*14 hex socket screw
- Expansion plug set
- M5 screw sets
- M6 fender washer
- SUNCLIX connector or MC4 Connector
- OT terminal
- Communication cable fastening tool*


* This accessory is intended for circular communication connectors only.

## Downloads

- [Datasheet SBR064 SBR096 SBR128 SBR160 SBR192 SBR224 SBR256 Datasheet V4 20240823](https://cdn.estg.eu/p/d/6/d/3/d6d3cf5fe5965aab117243e971ea70714dc71a7d_Datasheet_SBR064_SBR096_SBR128_SBR160_SBR192_SBR224_SBR256_Datasheet_V4_20240823.pdf)
- [EN UM SBR096 256 User Manual V20 202309](https://cdn.estg.eu/p/8/0/4/5/804574a454823c97340b6229d0c4ca7efff26eca_EN_UM_SBR096_256_User_Manual_V20_202309.pdf)
- [EN DE IT FR NL PL ES PT SE SBR096 256 Quick Installation Guide V18 202302](https://cdn.estg.eu/p/3/1/5/0/3150d5ba467ce8487d7b3caf0dd38582a9707b8a_EN_DE_IT_FR_NL_PL_ES_PT_SE_SBR096_256_Quick_Installation_Guide_V18_202302.pdf)
