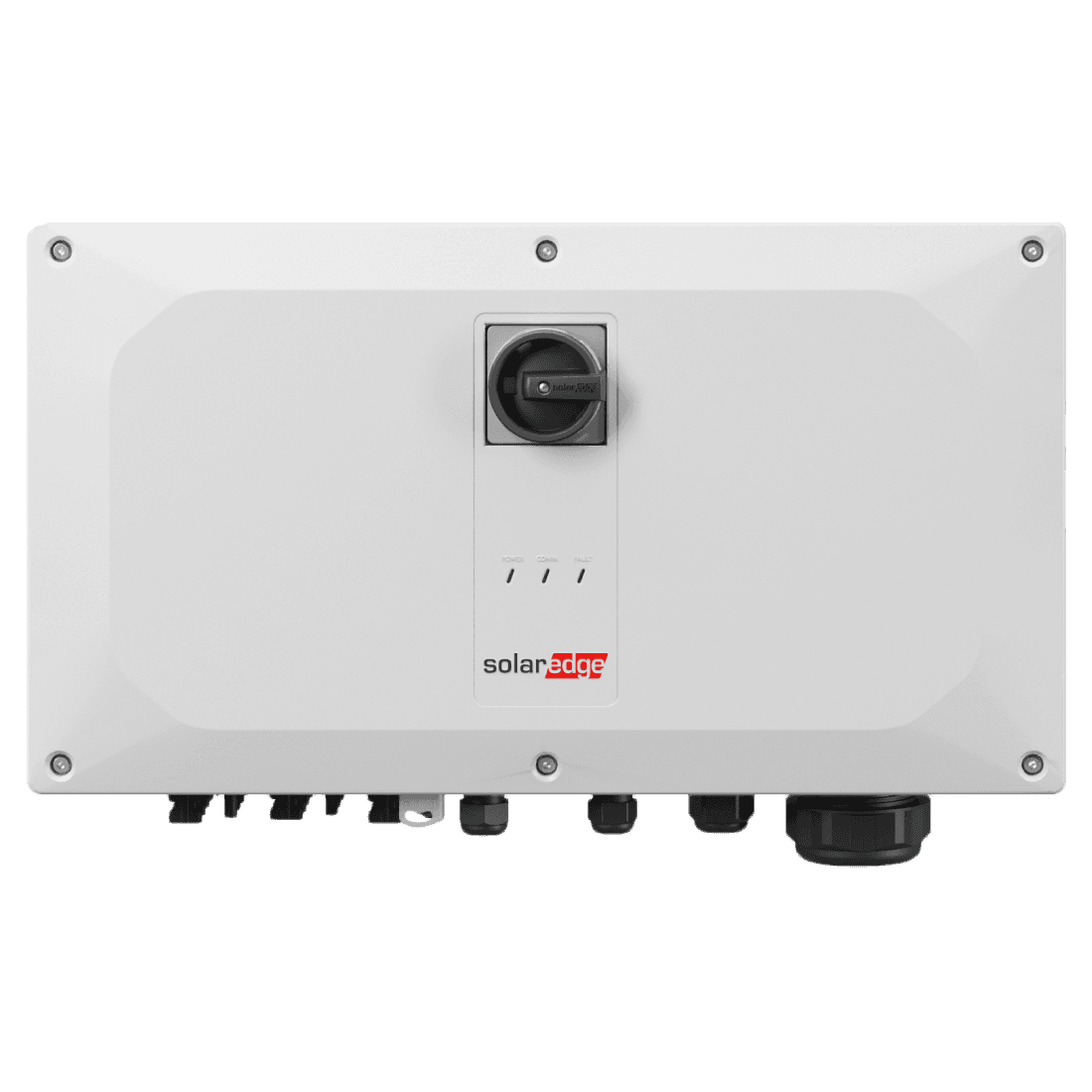

# SolarEdge 3PH Inverter with Synergy Technology, Manager, 90kW, MC4 connectors, DC SPD - Art.No.: SE90K-RW00IBNM4

## Specifications

- **Brand**: SolarEdge
- **HS code**: 85044086
- **Manufactor**: SolarEdge
- **Net Height**: 360 MILLIMETER
- **Net Length**: 273 MILLIMETER
- **Net Weight**: 18 KILOGRAM
- **Net Width**: 560 MILLIMETER
- **Origin**: Israel
- **Ingress Protection**: IP65
- **Max. output power**: 135000 WATT
- **Number of phases**: 3 phase
- **System**: SolarEdge Synergy
- **Type**: String
- **Warranty in Years**: 12

**Note: This SolarEdge 3PH Inverter, Synergy Manager is the primary unit within a SolarEdge Synergy system.**
The Synergy Unit products (SKUs: SESUK-RW00INNN4, SESUK-RWR0INNN4) are secondary modules. A Synergy Manager should always be combined with Synergy Units for a complete SolarEdge Synergy system.


**For a complete 90kW, 100kW or 120kW Synergy system three Synergy Units are required.**


**Commissioning needs to be done manually**


- Easy 2-person installation with a lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager)
- Independent operation of each Synergy Unit enables higher uptime and easy serviceability
- Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
- Built-in arc fault protection and optional rapid shutdown
- Built-in PID mitigation for maximized system performance
- Monitored* and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
- Optional integrated DC safety switch eliminates the need for external DC isolators
- Built-in module-level monitoring with Ethernet or cellular communication for full system visibility


*Applicable only for DC and AC SPDs

## Downloads

- [SolarEdge 3PH inverter with synergy technology Installation guide](https://cdn.estg.eu/p/1/d/9/8/1d98301913e129f852a85f030f3ae75f46fc9e6f_SolarEdge_3PH_inverter_with_synergy_technology_Installation_guide.pdf)
- [Three Phase Inverter with Synergy Technology SE50K SE120K DS 00008 1.1 EU](https://cdn.estg.eu/p/0/8/4/4/084498ae790db055da04a7faa352d2b8c40a5f59_Three_Phase_Inverter_with_Synergy_Technology_SE50K_SE120K_DS_00008_1.1_EU.pdf)
- [Datasheet Solaredge 3PH SExxK xxx0Ixxxx SE50K SE120K Delta EN 1](https://cdn.estg.eu/p/3/d/a/5/3da5646e9759d9450e30065aa66768daa40a56c2_Datasheet_Solaredge_3PH_SExxK_xxx0Ixxxx_SE50K_SE120K_Delta_EN_1.pdf)
