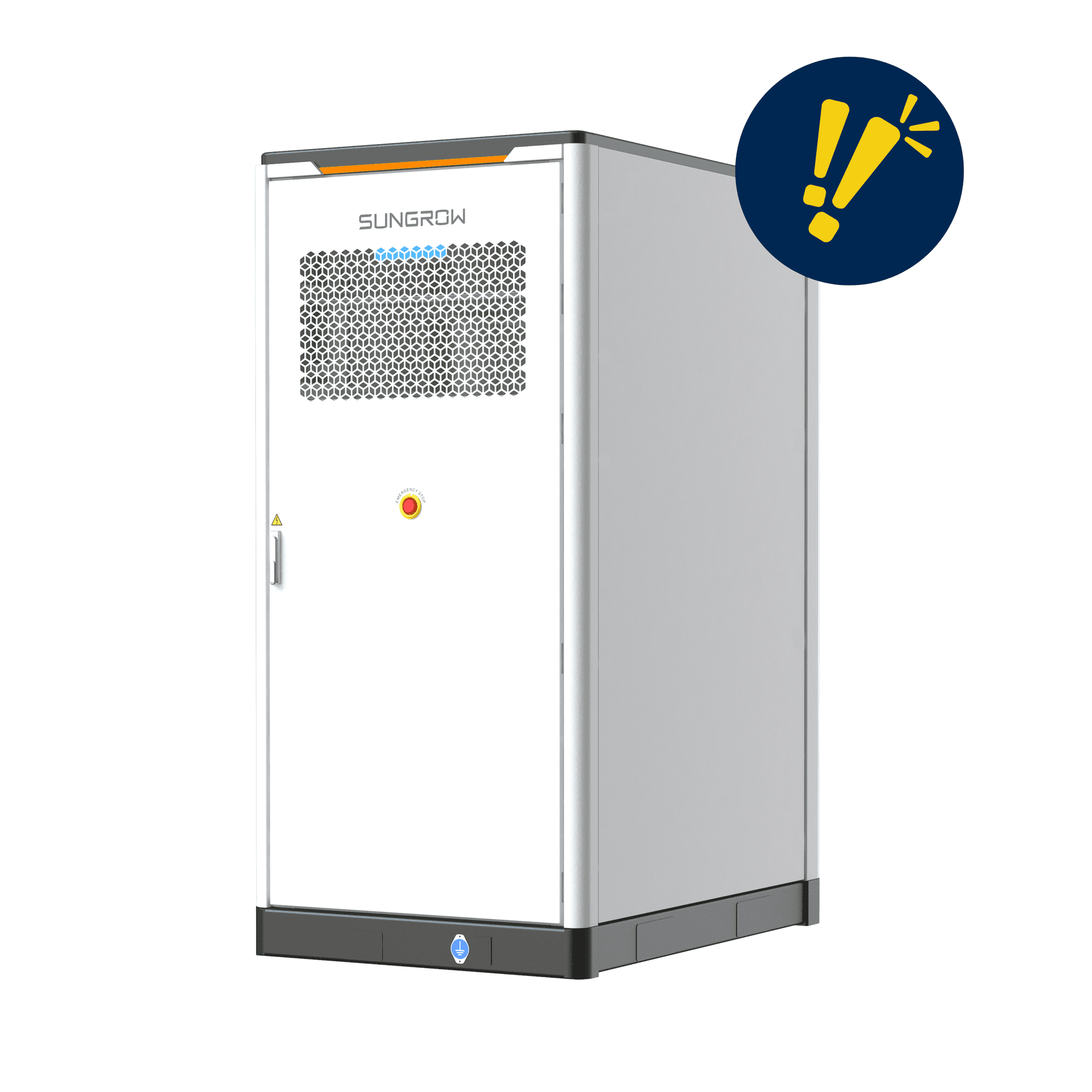

# Sungrow PowerStack 225kWh Liquid Cooled C&I Energy Storage System - Art.No.: ST225kWh-110kW-2h

## Specifications

- **Brand**: Sungrow
- **Manufactor**: Sungrow
- **Net Height**: 2450 MILLIMETER
- **Net Length**: 1150 MILLIMETER
- **Net Weight**: 3100 KILOGRAM
- **Net Width**: 1610 MILLIMETER
- **Origin**: China
- **Battery capacity**: 229 KILOWATT
- **Ingress Protection**: IP55
- **System**: Sungrow Powerstack

## Sungrow PowerStack 225kWh Liquid Cooled C&I Energy Storage System


The Sungrow PowerStack 225kWh is a cutting-edge energy storage solution designed for commercial and industrial applications, offering efficient energy management and enhanced reliability.


### Included, Optional & Mandatory Components





Component
Included
Optional
Mandatory




Anti-corrosion paint (C5-L)
✔
–
Yes


Fire resistance rating (1h)
✔
–
Yes


Fire resistance system (Aerosol)
✔
–
Yes


Explosion venting panel
❌
✔
No


Auxiliary Power Supply (Internal)
✔
–
Yes


Transformer cabinet (off-grid)
❌
✔
No


[EMS300CP](https://www.estg.eu/en-gb/p/B0B02247/sungrow-ems300cpcommercial-energy-management-system)
❌
✔
No


Battery cell type (EVE or CALB 280Ah)
✔
–
Yes





***Note: Some components like [EMS300CP](https://www.estg.eu/en-gb/p/B0B02247/sungrow-ems300cpcommercial-energy-management-system) and explosion venting panel are only included in specific configurations. The transformer cabinet is only necessary for off-grid use.***


### Key Features:


- **Integrated Design**: The PowerStack is a highly integrated energy storage system (ESS) that simplifies transportation and operation and maintenance (O&M). It comes pre-assembled, eliminating the need for on-site battery module handling and enabling installation and commissioning within 8 hours.
- **Advanced Liquid Cooling**: Utilizing intelligent liquid-cooling temperature control, the system ensures balanced heat dissipation with a cell temperature difference of ≤2.5°C. This technology extends the system's lifespan to over 10 years and reduces auxiliary power consumption by 33% through AI-controlled thermal balance.
- **High Efficiency**: The built-in Power Conversion System (PCS) boasts a maximum efficiency of 99%, contributing to an overall system round-trip efficiency (RTE) of 90%. This ensures more efficient power supply and optimized energy usage.
- **Intelligent Energy Management**: Equipped with an intelligent Energy Management System (EMS), the PowerStack supports various functions such as Virtual Power Plant (VPP) integration and off-grid operation. It enables multi-dimensional dispatch across scenarios like photovoltaic (PV) integration, energy storage, charging stations, and diesel power generation control.
- **Enhanced Safety**: The system incorporates comprehensive safety features, including AI monitoring of cell health with early warning capabilities to manage thermal runaway, three-level overcurrent protection (PACK, RACK, PCS), and a three-level fire safety design with accurate early warning mechanisms to prevent fire events.


The Sungrow PowerStack 225kWh Liquid Cooled C&I Energy Storage System is an ideal choice for businesses seeking a reliable, efficient, and intelligent energy storage solution to optimize their energy management strategies.

## Downloads

- [DS 20240205 ST225kWh 110kW 2h Datasheet V1 EN](https://cdn.estg.eu/p/a/2/e/d/a2ed7fe7711392f588f59d945f58e9279e4665c2_DS_20240205_ST225kWh_110kW_2h_Datasheet_V1_EN.pdf)
- [DS 20240307 SC110CX Datasheet V1 EN](https://cdn.estg.eu/p/1/d/8/7/1d87243a83f45fdd757745c8312508575689f474_DS_20240307_SC110CX_Datasheet_V1_EN.pdf)
- [Sungrow CI ESS Project Checklist EU V202409](https://cdn.estg.eu/p/0/3/a/d/03adc9526df034fdef146a97a44478d5fc795a42_Sungrow_CI_ESS_Project_Checklist_EU_V202409.pdf)
