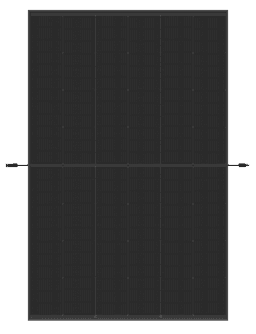

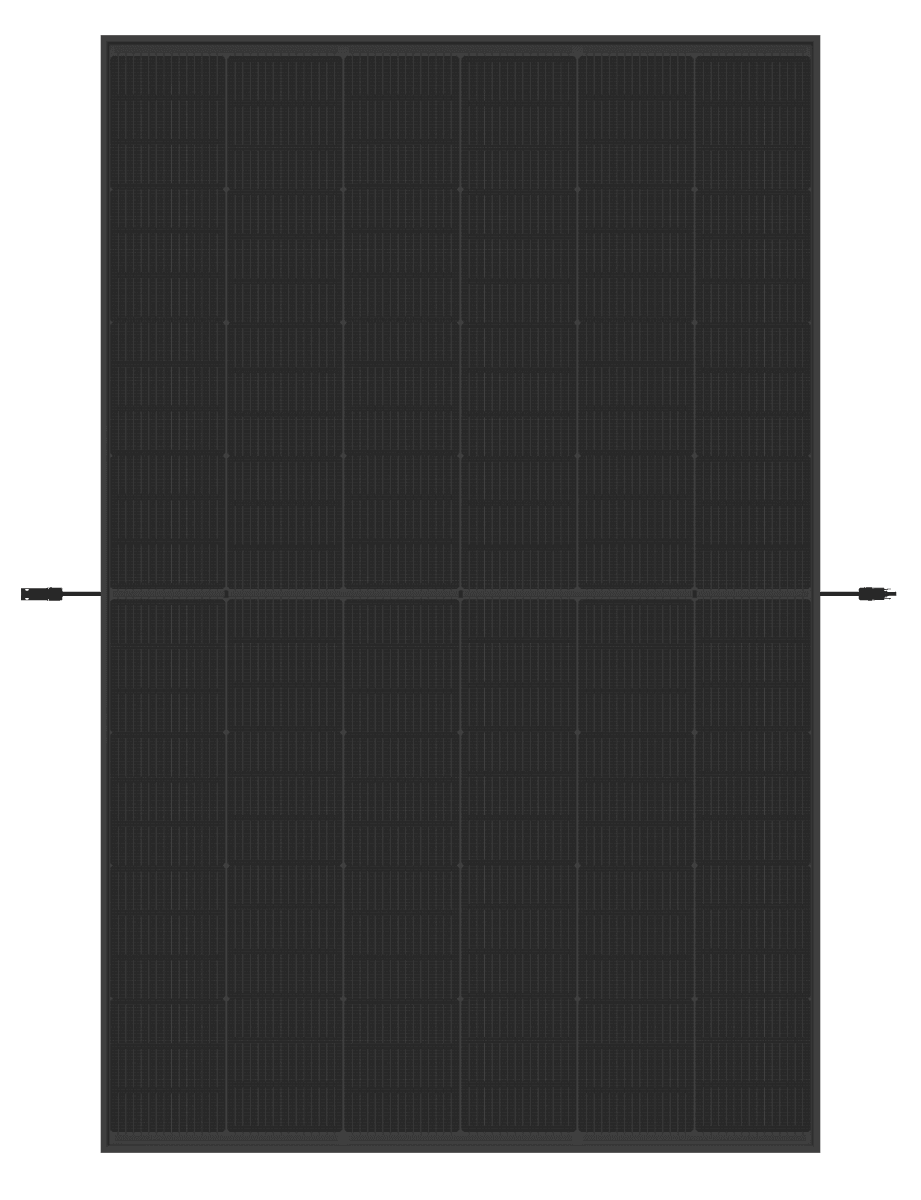

# Trina Vertex S+ N-Type Dual Glass 500W - Triple-Cut 1500V All Black Solar Panel - Art.No.: TSM-500-NEG18R.25

## Specifications

- **Brand**: Trina Solar
- **HS code**: 85414300
- **Manufactor**: Trina Solar
- **Net Height**: 30 MILLIMETER
- **Net Length**: 1961 MILLIMETER
- **Net Weight**: 23.5 KILOGRAM
- **Net Width**: 1134 MILLIMETER
- **Origin**: China
- **Backsheet**: All black
- **Cell technology**: N-type TOPCon
- **Connector type**: MC4-EVO2
- **Max. output power**: 500 WATT
- **Number of cells**: 108
- **Color frame**: Black
- **Type**: Glass-Glass
- **Glass with anti-reflection coating**: Yes
- **Warranty in Years**: 25

# **Trina Vertex S+ TSM-500-NEG18R.25 N-Type Dual Glass 500W Solar Panel**


The Trina Vertex S+ TSM-500-NEG18R.25 is a powerful solar panel equipped with advanced N-type i-TOPCon cell technology and a robust dual-glass construction. Optimised for high performance, reliability, and aesthetics, this all-black panel is an excellent choice for a variety of projects.


## **Key Features**


- N-type i-TOPCon Technology: This innovative cell technology improves module efficiency up to 22.5% and minimises degradation (1% in the first year, 0.4% annually).
- Dual-Glass Design: The 1.6 mm tempered glass panes on both the front and rear protect the cells from microcracks, scratches, and environmental influences, resulting in higher durability.
- All-Black Design: The completely black design of the panel, including the frame and cells, provides a sleek and modern appearance that seamlessly blends with the roof surface.
- 108 Triple-Cut Cells: The half-cell structure increases efficiency and reduces internal resistance, which improves energy yield in low light conditions and partial shade.
- 1500V System Voltage: Suitable for systems with a higher voltage, which results in longer strings and less cabling.


## **Main Advantages**


- High energy yield thanks to superior N-type cell technology and excellent low-light performance.
- Lower LCOE (Levelised Cost of Energy) and shorter payback period due to high module efficiency.
- Improved safety with an excellent fire rating and a robust construction that withstands extreme weather conditions.
- Easy installation and compatibility with common mounting systems and inverters.
- Increased durability and protection against environmental factors such as salt, ammonia, and sand.
- Aesthetically appealing, ideal for projects where appearance is of great importance.


## **Applications**


This solar panel is suitable for a wide range of projects, from residential rooftops to commercial and industrial installations. It is an excellent solution for customers who want a combination of high performance, reliability, and an aesthetic appearance.


## **Warranty and Durability**


The Trina Vertex S+ panel comes with a 25-year product warranty and a 30-year linear power warranty, guaranteeing a power output of 87.4% after 30 years. The robust construction can withstand mechanical loads of up to 5400 Pa (positive) and 2400 Pa (negative) and is IP68 certified.

## Downloads

- [Datasheet Vertex S NEG18R.25](https://cdn.estg.eu/p/7/1/8/b/718b65aed8886301983c41e1aee6da6d6a0f4529_Datasheet_Vertex_S_NEG18R.25.pdf)
