# Growatt 1PH Onduleur MIC 800TL-X - Art.No.: PV00.0044700

## Specifications

- **Marque**: Growatt
- **Code HS**: 85044085
- **Fabricant**: Growatt
- **Hauteur nette**: 254 MILLIMETER
- **Longueur nette**: 138 MILLIMETER
- **Poids net**: 6 KILOGRAM
- **Largeur nette**: 274 MILLIMETER
- **Origine**: Chine
- **Indice de protection**: IP65
- **Puissance maximale de sortie**: 800 WATT
- **Nombre de phases**: 1 phase
- **Système**: Growatt MIC-X series
- **Type**: Chaîne
- **Garantie en années**: 10

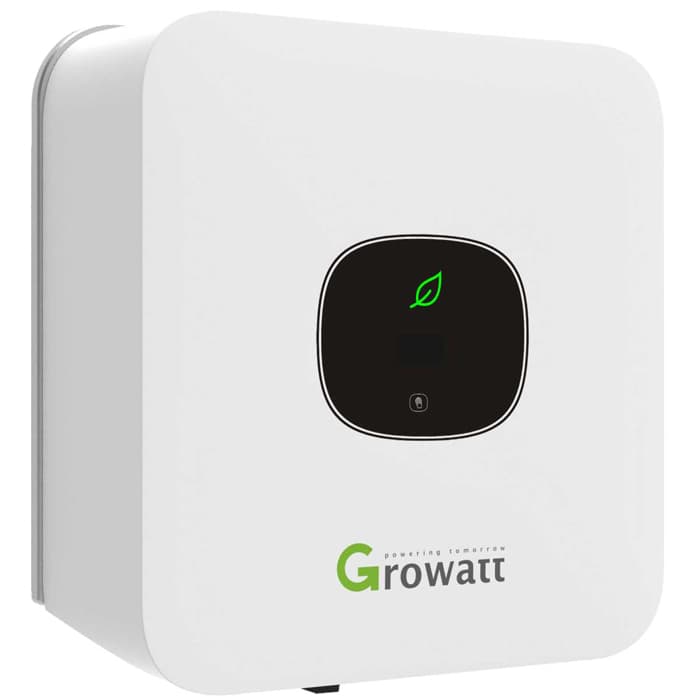

The **Growatt MIC 800-X** is a light and compact residetial inverter. The maximum DC voltage is 500V, a start voltage of 50V and a nominal voltage of 120V. There is one MPPT with a a maximum input of 13A. Safety is an important aspect, accomplished with several features. Amongst these features are a DC switch, surge protection and option for AFCI.

## Lightweight and compact

With just 6kgs, it's a very light inverter that's also quite compact in size. This makes the inverter easily and quickly placeable by a single installer, making it save time and money.

## Safety and reliability

The Growatt MIC 800-X has various safety characteristics. There is DC reverse polarity protection, a DC switch and surge protection on both sides. AFCI, or Arc Fault Circuit Interrupter, is optional. Another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are less moving parts, which means less maintenance and less risk of malfunctions.

## Downloads

- [MIC 600 800TL X  EU](https://cdn.estg.eu/p/1/3/e/6/13e6fca8c66f1098b5a89092e30e8742496b65a0_MIC_600_800TL_X__EU.pdf)
- [GROWATT ENERGY STORAGE CONFIGURATION QUICK CHECK LIST](https://cdn.estg.eu/p/d/f/2/b/df2b2f97660cdd00345d6fbf08bb234b007dbfb8_GROWATT_ENERGY_STORAGE_CONFIGURATION_QUICK_CHECK_LIST.pdf)
