Athilex 1x6.0mm2 H1Z2Z2-K Red CCA - 100 MTR

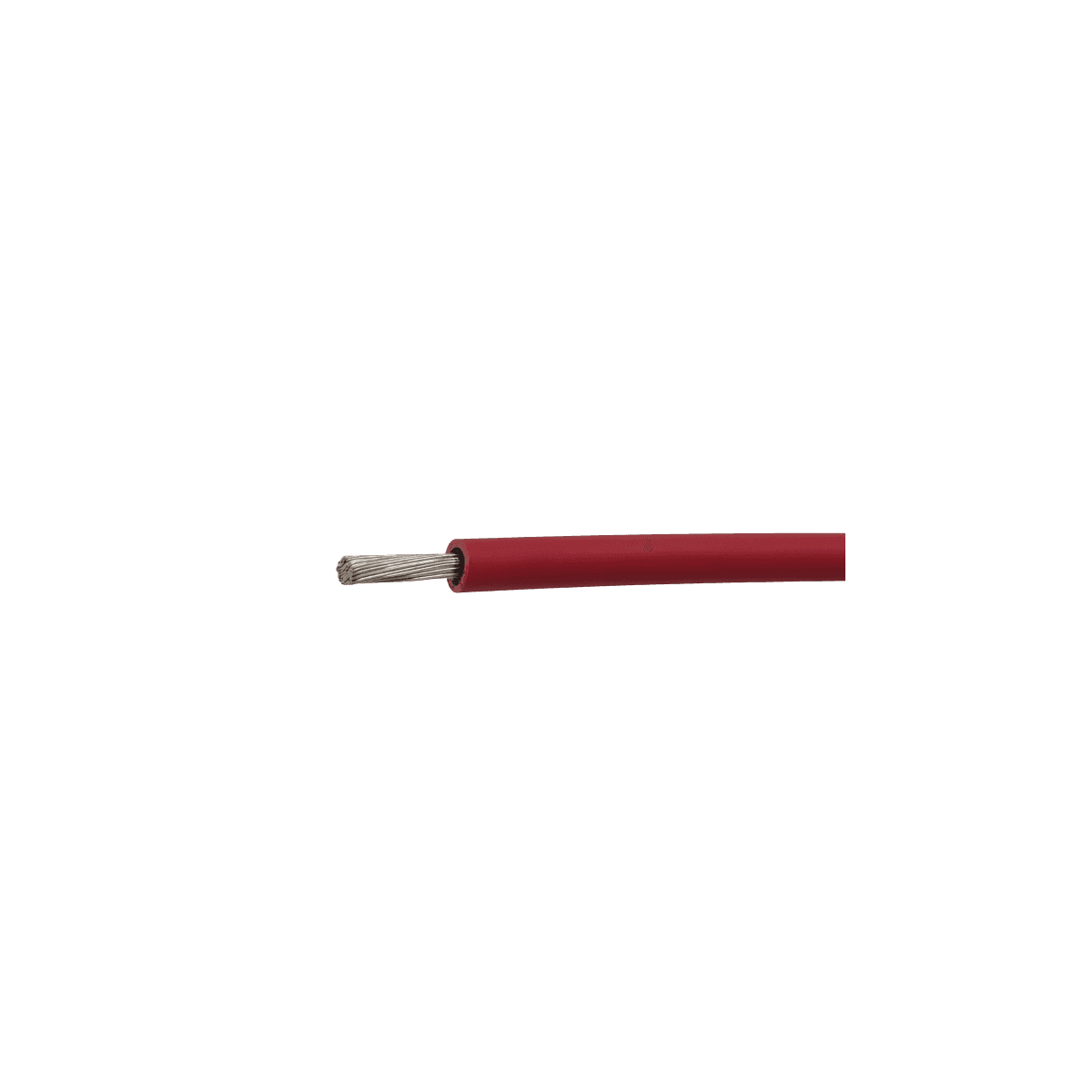

 The Athilex H1Z2Z2-K cable, type 1x6.0mm2, is a high-quality red insulated PV cable, 100 metres in length, specifically designed for professional solar energy installations. The cable complies with the strict H1Z2Z2-K standard and is suitable for both indoor and outdoor use.

Key Features

• Core: 1 x 6.0 mm²
• Material: Copper Clad Aluminium (CCA)
• Colour: Red
• Length: 100 metres
• Standard: Compliant with H1Z2Z2-K
• Insulation: Halogen-free, double-insulated sheath
• Rated Voltage: Uo/U 1.0/1.0 kV AC – 1.5/1.5 kV DC Maximum Permitted
• Voltage: 1.8 kV DC
• Test Voltage: 6.5 kV AC Operating
• Temperature: -40 °C to +90 °C
• Max. Core Temperature: +120 °C (for 20.000 hours)
• Min. Bending Radius: 5 x cable diameter (fixed installation)
• CPR: Dca-s2,d2,a1
• Certification: TÜV Rheinland
• Standards: EN 50618:2014, IEC 60228, EN 50395, EN 50396, EN 60332-1-2, EN 61034-1/2, EN 50525-1, EN 60216-1

Key Benefits

• Durability: The CCA core provides an economical alternative to pure copper while maintaining excellent electrical conductivity.
• Safety: The halogen-free, double insulation minimises the spread of toxic fumes and corrosive gases in the event of a fire.
• Weather-resistant: This cable is UV, ozone, and weather-resistant, guaranteeing a long service life under various weather conditions. Flexibility: The cable is flexible and easy to handle, which reduces installation time on site.
• Certification: Complies with the strict H1Z2Z2-K standard, guaranteeing a safe and reliable connection.

Applications

The Athilex H1Z2Z2-K cable is ideal for connecting solar panels in residential, commercial, and industrial solar installations. The cable is suitable for use in PV systems up to 1500 V DC, both in open fields and on roofs.
