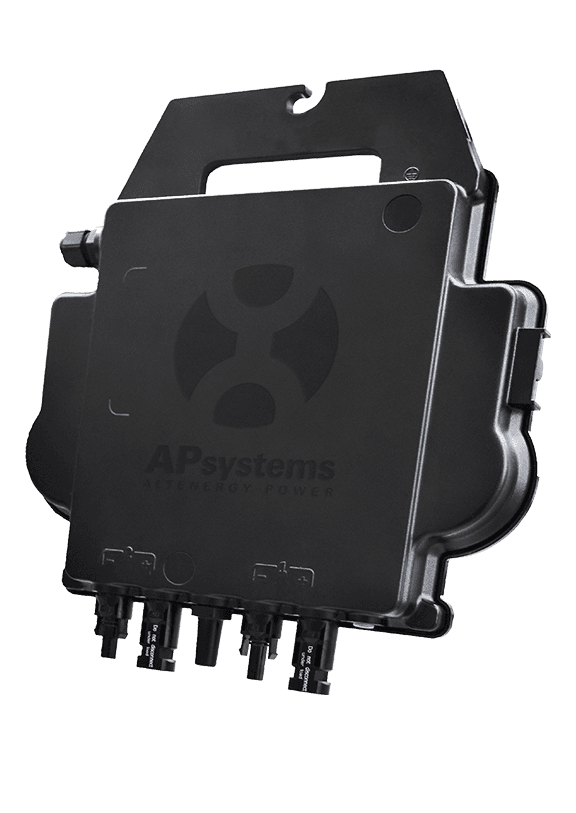

# APSystems DS3 Mikroomriktare - Art.No.: 117018

## Specifications

- **Märke**: APSystems
- **HS-kod**: 85044085
- **Tillverkare**: APSystems
- **Nettohöjd**: 218 MILLIMETER
- **Nettolängd**: 42.5 MILLIMETER
- **Nettovikt**: 3 KILOGRAM
- **Nettobredd**: 263 MILLIMETER
- **Ursprung**: Kina
- **Skyddsklass**: IP67
- **Antal faser**: 1-fas
- **Garanti i år**: 2

APsystems’ 3rd generation of dual-module microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.



The DS3 series reaches unprecedented levels of power output and is fully backwards compatible with QS1 and YC600 microinverters and accessories. It features 2 input channels, each with independent MPPT, and encrypted wireless Zigbee communication. An innovative and compact design makes the product lighter while maximizing power production, and silicone-encapsulated components reduce stress on electronics, facilitate thermal dissipation, and enhance weatherproofing. Reliability is significantly increased thanks to 20% fewer components than previous generations.



With its unparalleled performance, efficiency of 97%, and increased reliability, the APsystems DS3 series is a gamechanger for residential and commercial solar.



- One microinverter connects to two modules
- Max output power reaching 880VA
- Two input channels with independent MPPT
- Reactive Power Control
- Maximum reliability, IP67
- Encrypted Zigbee Communication
- Safety protection relay integrated


För att vara berättigad till bästa möjliga garantivillkor måste APsystems mikroväxelriktare övervakas via EMA-portalen. Se de allmänna garantivillkoren på [emea.APsystems.com](http://emea.apsystems.com/).





See all our [APSystems inverters](https://www.estg.eu/en-gb/inverters/apsystems/)

## Downloads

- [Manual APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/7/a/7/4/7a7444d2e0030576913ee9bbba1035be0c70efd1_Manual_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [Certificate CS33786 Europe CE RED APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/5/f/6/8/5f68d538370a61822609ca309947045fc0933b2f_Certificate_CS33786_Europe_CE_RED_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [Certificate EN50549 1 APSystems DS3 L Micro Inverter 2021 ENG 1](https://cdn.estg.eu/p/9/4/a/e/94ae6bf5c3e907f0fc96374458559d57f79c074c_Certificate_EN50549_1_APSystems_DS3_L_Micro_Inverter_2021_ENG_1.pdf)
- [APsystems DS3 Datasheet   EN](https://cdn.estg.eu/p/4/8/1/5/481503870d4711bfd73149495159b6cf743907f7_APsystems_DS3_Datasheet___EN.pdf)
