# APSystems 2,4 meters (4mm2) 5 cores bus cable for QT2 - Art.No.: 2322609122

## Specifications

- **Märke**: APSystems
- **HS-kod**: 85444290
- **Tillverkare**: APSystems
- **Nettolängd**: 2400 MILLIMETER
- **Nettovikt**: 0.4 KILOGRAM
- **Ursprung**: Kina

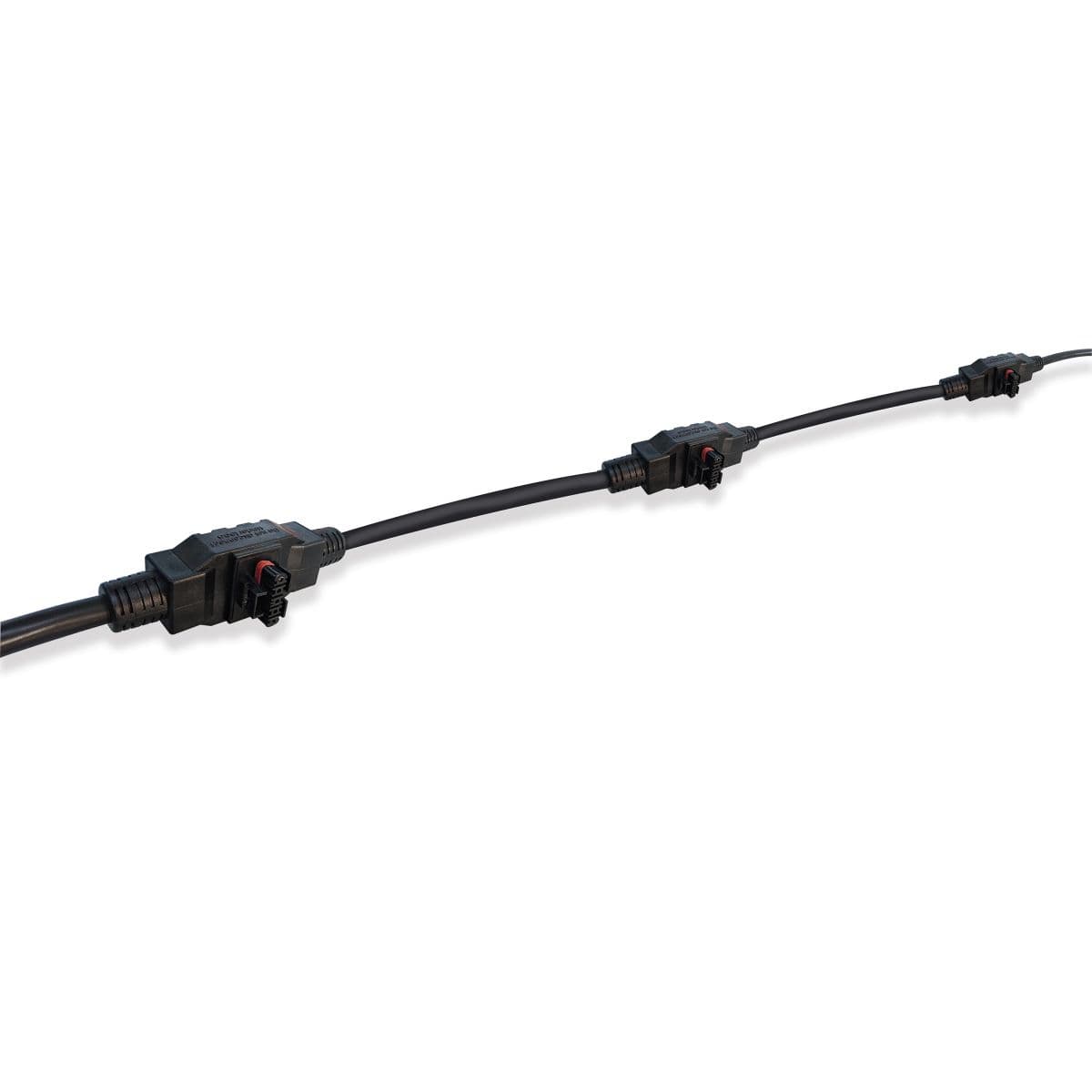

# **APSystems 2,4 meters (4mm2) 5 cores bus cable for QT2**


This 5-core AC bus cable connects the three-phase APsystems QT2 microinverters to the mains grid. It is an essential component for the reliable and safe installation of solar panels in commercial and larger residential projects.


## **Key Features**


- **Number of cores:** 5 (L1, L2, L3, N, PE)
- **Cross-section:** 4 mm²
- **Cable length between connectors:** 2.4 metres
- **Cable type:** H07RN-F
- **Connection:** Suitable for the **[APsystems QT2 three-phase microinverters](https://www.estg.eu/en-gb/p/124056)**
- **IP rating:** IP67


## **Key Benefits**


- **High current-carrying capacity:** The 4 mm² cross-section is optimised for a higher current load, which reduces the number of cables required per string.
- **Three-phase application:** Specifically designed for three-phase systems, ensuring balanced and efficient power distribution.
- **Fast installation:** Thanks to the pre-fabricated connectors, installation is plug-and-play, saving both time and cost.
- **Durability:** Made from robust, weather-resistant material (H07RN-F cable) and featuring an IP67 certification, guaranteeing a long service life and reliability in various environments.
- **Safety:** The earthed connection of the microinverter to the bus cable ensures a safe electrical installation.


## **Applications**


This bus cable is suitable for setting up three-phase PV installations, primarily in commercial environments or large residential projects that use the APsystems QT2 microinverters. Its robust construction makes the cable ideal for outdoor applications.


## **Warranty and Durability**


The cable is IP67-certified, meaning it is completely dust- and waterproof, and resistant to immersion. The H07RN-F cable type is known for its resistance to oil, UV radiation, and extreme temperatures, which ensures the durability of the installation.
