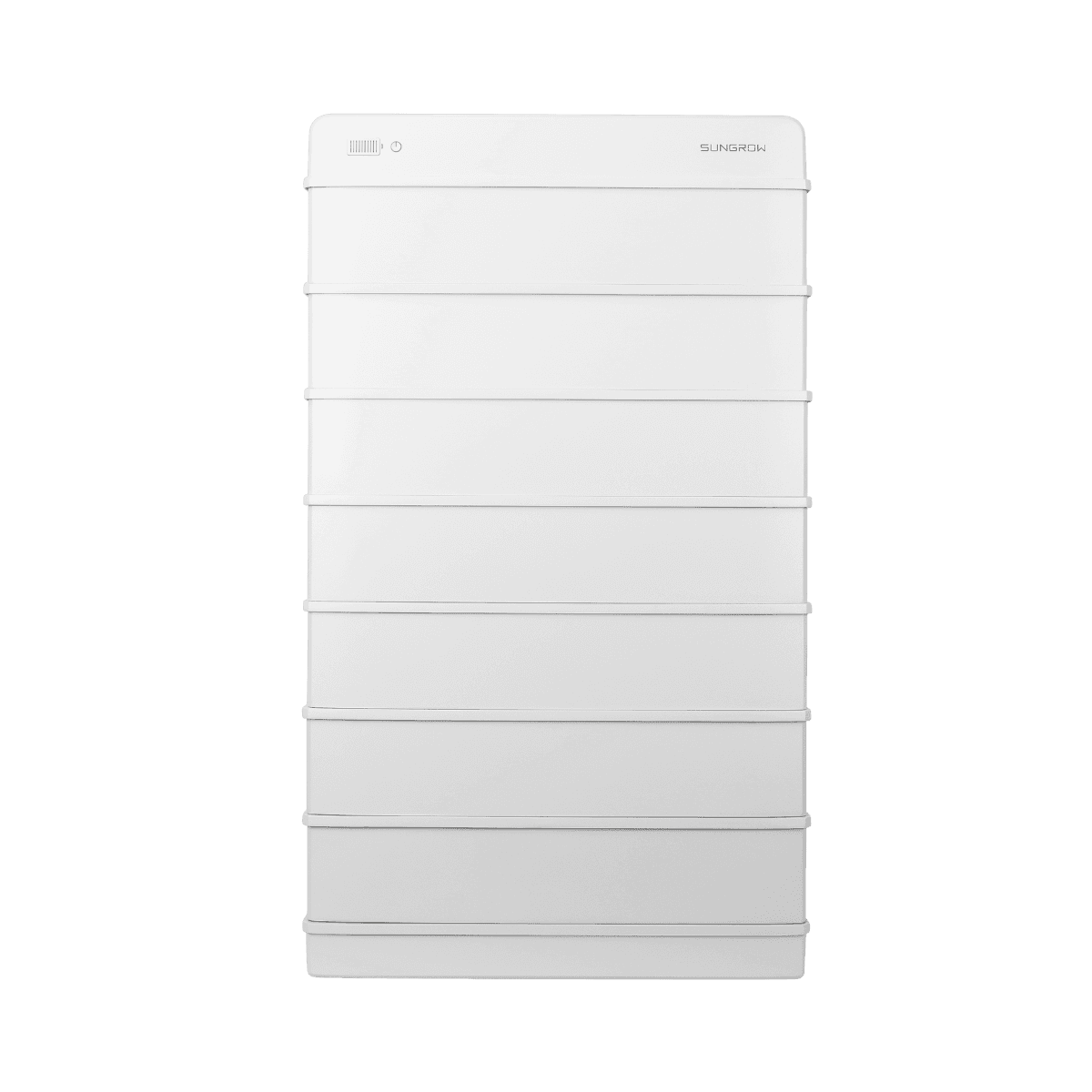

# Sungrow SBR224 Högeffekt LFP-batterisystem (22.4 kWh batteri + BMS) - Art.No.: SBR224

## Specifications

- **Märke**: Sungrow
- **HS-kod**: 85076000
- **Tillverkare**: Sungrow
- **Nettohöjd**: 1065 MILLIMETER
- **Nettolängd**: 330 MILLIMETER
- **Nettovikt**: 246 KILOGRAM
- **Nettobredd**: 625 MILLIMETER
- **Ursprung**: Kina
- **Batterikapacitet**: 22.4 KILOWATT
- **Skyddsklass**: IP55
- **Antal faser**: 3-fas
- **System**: Sungrow SBR
- **Typ**: Set
- **Spänning batteri**: Hög

## Sungrow SBR224 High Voltage 22.4kWh LFP battery system


This Sungrow 22.4kWh battery systems consists of


- **1x BMS**
- **7x Sungrow SBR Battery Module 3.2kW **
- **Accessories for complete installation:**
- Base
- Top cover
- Switch gear
- Bracket
- Side covers
- Communication connector
- M5*125 hex socket screw (optional)
- Foot
- M5*14 hex socket screw
- Expansion plug set
- M5 screw sets
- M6 fender washer
- SUNCLIX connector or MC4 Connector
- OT terminal
- Communication cable fastening tool*


* This accessory is intended for circular communication connectors only.

## Downloads

- [SE DS SBR064 096 128 160 192 224 256 Datablad V4 20240911](https://cdn.estg.eu/p/f/f/f/3/fff3a020b8ebd5629eb158f8a2a3cd882828f38e_SE_DS_SBR064_096_128_160_192_224_256_Datablad_V4_20240911.pdf)
- [SE UM SBR096 256 Anv  ndarhandbok V19 202302](https://cdn.estg.eu/p/8/e/3/a/8e3a221f4b44d5205468edb604a6d236c8436975_SE_UM_SBR096_256_Anv__ndarhandbok_V19_202302.pdf)
- [EN DE IT FR NL PL ES PT SE SBR096 256 Quick Installation Guide V18 202302](https://cdn.estg.eu/p/d/3/e/a/d3ea02eeb60cd7d01621ac9dcbbe754cfad317e7_EN_DE_IT_FR_NL_PL_ES_PT_SE_SBR096_256_Quick_Installation_Guide_V18_202302.pdf)
